Запчасти Case IH FARMALL 105C (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

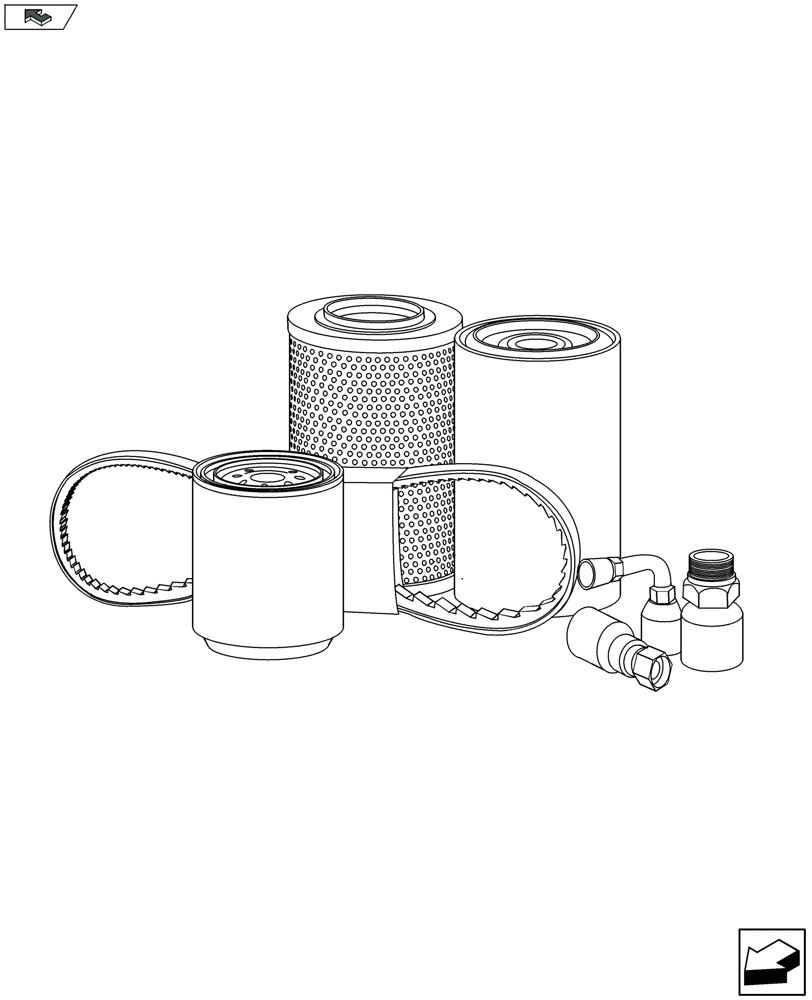

Схема запчастей Case IH FARMALL 105C - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

47124937

SEAL KIT

Seal Kit Steering Cylinder (p/n 47136495)

1шт.

Valid for NA Market only

1шт.

2

47373364

SEAL KIT

Steering Cylinder (2WD)

1шт.

Not Valid for HI-LO Models

1шт.

3

47367197

MASTER CYLINDER

Brake, D 25.4

2шт.

4

84416717

IGNITION KEY

2шт.

5

5801446795

GASKET

Cylinder Head Cover

1шт.

6

5801450757

CYLINDER HEAD GASKET,0.80mm Thk

1шт.

7

504164360

GASKET

Engine Oil Pan

1шт.

8

5801506502

SENSOR

Water in Fuel on Filter

1шт.

9

504231722

DIPSTICK

Engine Oil

1шт.

10

5801367249

THERMOSTAT

Engine

1шт.

11

82017881

SENSOR

Engine Coolant

1шт.

12

4897242

SENSOR

Cranckshaft Speed

1шт.

13

504048261

SENSOR

Phase Engine

1шт.

14

47383500

ALTERNATOR,14V, 120A, W/Pulley

1шт.

15

87610994

CAP,103mm OD x 69.7mm Thk

Fuel Tank, Complete Of Chain

1шт.

16

84407170

WIPER ARM,Single, 330mm L

Single Arm, L=33 (For Openable)

1шт.

Valid for CAB Models only (EU Market)

1шт.

17

84407173

WIPER BLADE,400mm L

Single, L=400 mm (For Openable)

1шт.

Valid for CAB Models only (EU Market)

1шт.

18

84346681

WIPER ARM,Dual/Parallel Arm, 500mm L

Parallel Arm

1шт.

Valid for CAB Models only

1шт.

19

87319297

WIPER BLADE,Single, 500mm L

Parallel, L=500 mm

1шт.

Valid for CAB Models only

1шт.

20

84605257

WIPER,Single, 350mm L

Rear Blade

1шт.

Valid for CAB Models only

1шт.

21

84605257

WIPER,Single, 350mm L

Rear Arm

1шт.

Valid for CAB Models only

1шт.

22

84487915

SWITCH

Switch or Seat

1шт.

Valid for CAB Models only

1шт.

23

84479776

SENSOR

Restriction - Air Filter

1шт.

24

84286249

SENSOR

Dpf Delta Pressure

1шт.

25

84286040

SENSOR

Lambda Uhego

1шт.

26

84416718

IGNITION SWITCH,50A

50A, Off/Run/Ign

1шт.

27

87392809

RELAY,High Current, 12V, 190A

High Current 12V - 190A

1шт.

28

87522595

FUSE,7.5A, Mini, Brown

Minival 7.5A

1шт.

29

10401190

FUSE,20A, Mini, Yellow

Minival 20A

1шт.

30

84153830

FUSE,5A, Mini, Beige

Minival 5A

1шт.

31

87522597

FUSE,10A, Mini, Red

Minival 10A

1шт.

32

87524877

FUSE,15A, Mini, Blue

Minival 15A

1шт.

33

5173264

FUSE,30A, Maxi, Green

Maxival 30A

1шт.

34

84157159

FUSE,40A, Maxi, Orange

Maxival 40A

1шт.

35

84157157

RELAY,12V, 20A, Micro

Microrelay 12V - 20A

1шт.

36

84157161

RELAY,12V, 20A

Microrelay 12V - 10/20A

1шт.

37

14144690

BULB,P21/5W, 12V, 21/5W

2 Filament 12V - 21/5W

1шт.

38

87304742

HOLDER

Bulb W5W

1шт.

39

529068

BULB,#1156, 12V, 21W

Spherical

1шт.

40

87304554

HOLDER

Bulb P21W / R5W / R10W

1шт.

41

10774590

BULB,H7, 12V, 55W

H7

1шт.

42

10861290

BULB,12V, 35W

12V - 35W

1шт.

43

84360812

BULB,Halogen, 12V, 65/55W

Hb5

1шт.

44

139119A1

BULB,#886, 12V, 50W

Worklamp

1шт.

45

47370942

WET BATTERY,12V, 800CCA

12V

1шт.

46

BCM34770W

WET BATTERY

12V, US

1шт.

47

CCM34770W

WET BATTERY

12V, CAN

1шт.

48

5184313

BRAKE DISC,50mm ID x 261mm OD x 9.6mm Thk

with Pads

4шт.

49

5191349

DISC

Brake

4шт.

50

47130406

BRAKE DISC

5шт.

51

5178600

BRAKE DISC,80mm ID x 168mm OD x 3.5mm Thk

2шт.

Выбрано товаров: 60
