Запчасти Case IH FARMALL 105C (35.162.AG[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, CYLINDER, LINES, WITH FRONT PTO (35) - HYDRAULIC SYSTEMS

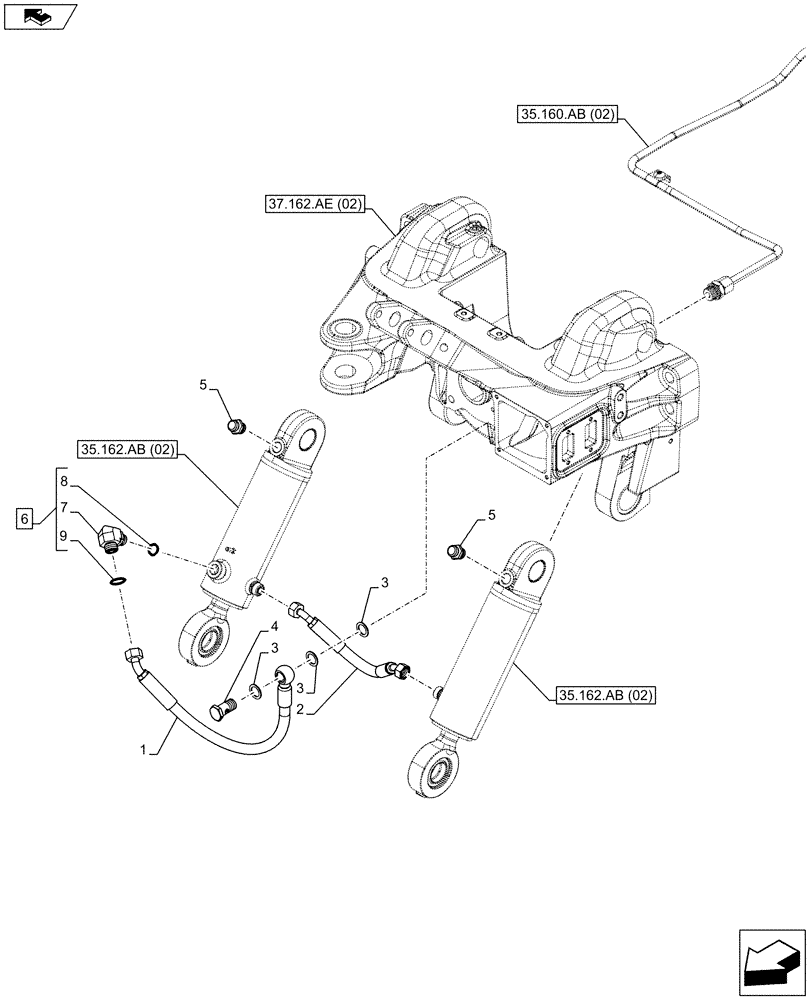

Схема запчастей Case IH FARMALL 105C - (35.162.AG[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, CYLINDER, LINES, WITH FRONT PTO (35) - HYDRAULIC SYSTEMS
6
5
2
35.160.ab (02)
8
37.162.ae (02)
1
3
5
home
9
35.162.ab (02)
4
3
7
35.162.ab (02)
3

Артикул

Название

Примечание

Количество

1

84521288

HYDRAULIC HOSE,9.53mm ID x 470mm L, SAE 100R2

1шт.

2

47397095

HYDRAULIC HOSE,9.53mm ID x 300mm L, SAE 100R2

1шт.

3

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

3шт.

4

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

5

87560100

BREATHER,M18 x 1.5mm

2шт.

6

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 9
