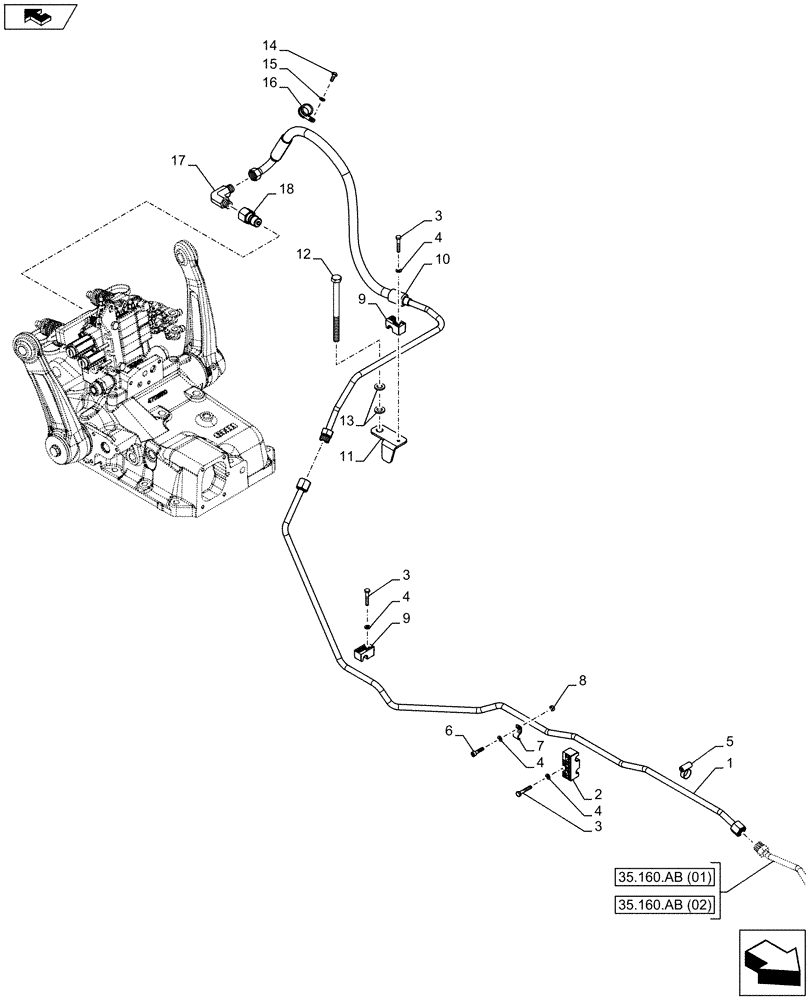

Запчасти Case IH FARMALL 105C (35.160.AB[03]) - VAR - 331789, 332789 - 3 POINT HITCH, FRONT, HYD. LINE (35) - HYDRAULIC SYSTEMS

1

84535052

TUBE

Delivery Front Cylinder

1шт.

2

84533862

BLOCK

1шт.

3

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

M6 x 35 mm

3шт.

4

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

5

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

1шт.

6

16689377

M6 x 25 mm

SCREW,M6 x 25mm

1шт.

7

10113304

CLAMP

1шт.

8

9706755

NUT,M6, Cl 8

D= 6 mm

1шт.

9

87532290

BRACKET

2шт.

10

84535188

PIPE

Delivery Front Cylinder

1шт.

11

84495832

BRACKET

1шт.

12

15542221

BOLT,Hex, M12 x 1.25 x 160mm, Cl 8.8

1шт.

13

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

14

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

15

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

16

10418901

CLAMP,20mm, Coat, P Type

1шт.

17

84499090

90 ELBOW

1шт.

18

5101741

QUICK MALE COUPLING

1шт.
