Запчасти Case IH FARMALL 105C (25.108.AA[02]) - VAR - 743560 - 4WD FRONT AXLE, HALF SHAFT, W/HYDRAULIC DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

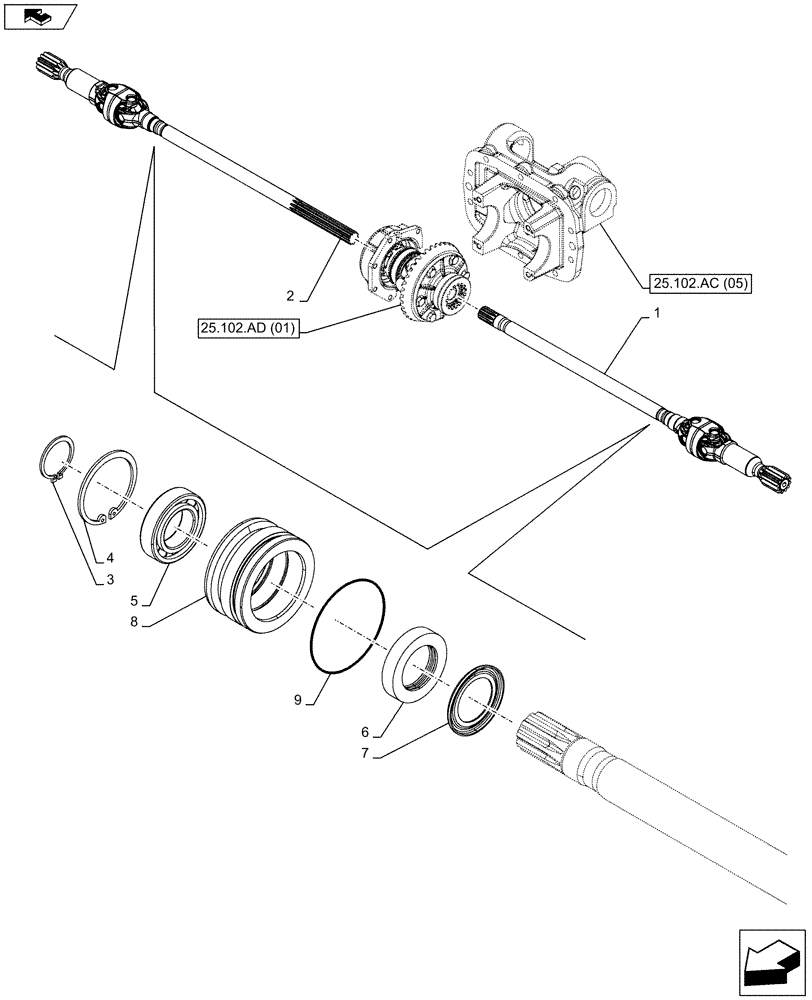

Схема запчастей Case IH FARMALL 105C - (25.108.AA[02]) - VAR - 743560 - 4WD FRONT AXLE, HALF SHAFT, W/HYDRAULIC DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
5
8
4
home
9
6
2
3
1
25.102.ac (05)
25.102.ad (01)
7

Артикул

Название

Примечание

Количество

1

84356634

HALF SHAFT

LH

1шт.

2

84356629

HALF SHAFT

RH

1шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

11060676

CIRCLIP,M55, Int

2шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

6

84266933

SEAL,35mm ID x 52mm OD x 18.5mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

8

84351856

BUSHING,46mm ID x 75mm OD x 48mm L

2шт.

9

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

Выбрано товаров: 9
