Запчасти Case IH FARMALL 105C (25.102.AT[05]) - VAR - 743560, 743561, 337323, 337323 - 4WD FRONT AXLE, DIFFERENTIAL LOCK, PIPE, W/HYDRAULIC DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

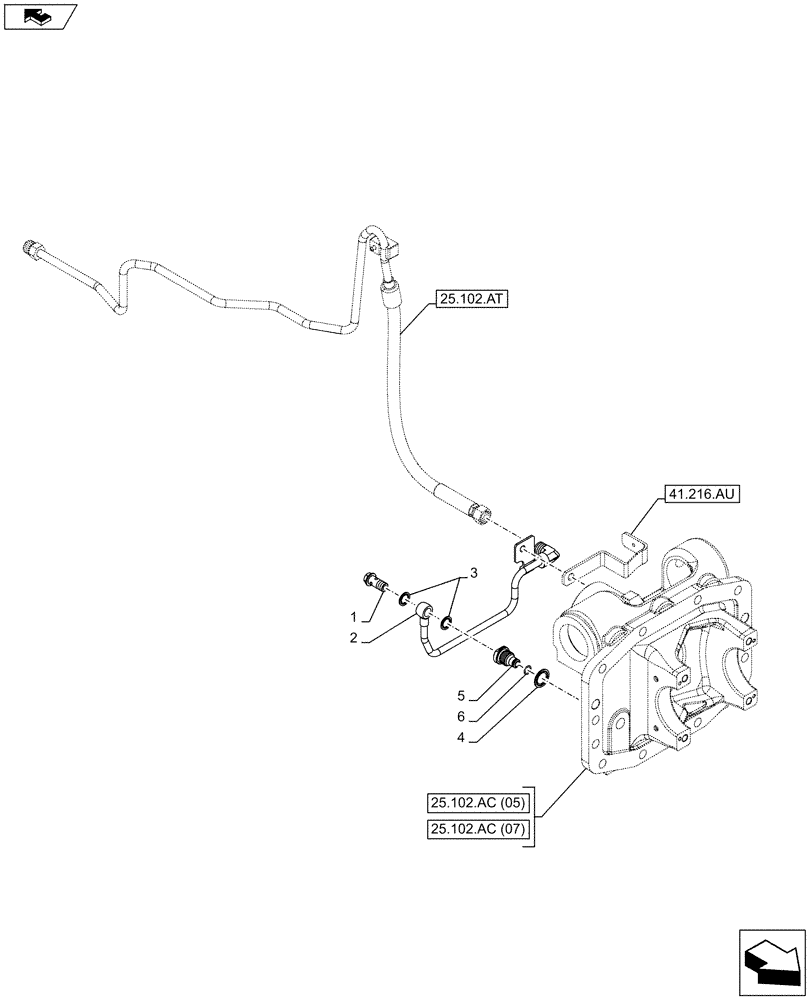

Схема запчастей Case IH FARMALL 105C - (25.102.AT[05]) - VAR - 743560, 743561, 337323, 337323 - 4WD FRONT AXLE, DIFFERENTIAL LOCK, PIPE, W/HYDRAULIC DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
41.216.au
3
a
4
t
25.102.ac (05)
6
5
1
2
25.102.ac (07)
home
25.102.

Артикул

Название

Примечание

Количество

1

87736840

BOLT,M14 x 1.5 x 30mm

1шт.

2

84384169

TUBE

1шт.

3

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

2шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

5

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

6

81844608

O-RING,11.10mm ID x 1.78mm

1шт.

Выбрано товаров: 6
