Запчасти Case IH FARMALL 105C (25.100.AD[04]) - VAR - 338323 - 4WD FRONT AXLE, HOUSING, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (25) - FRONT AXLE SYSTEM

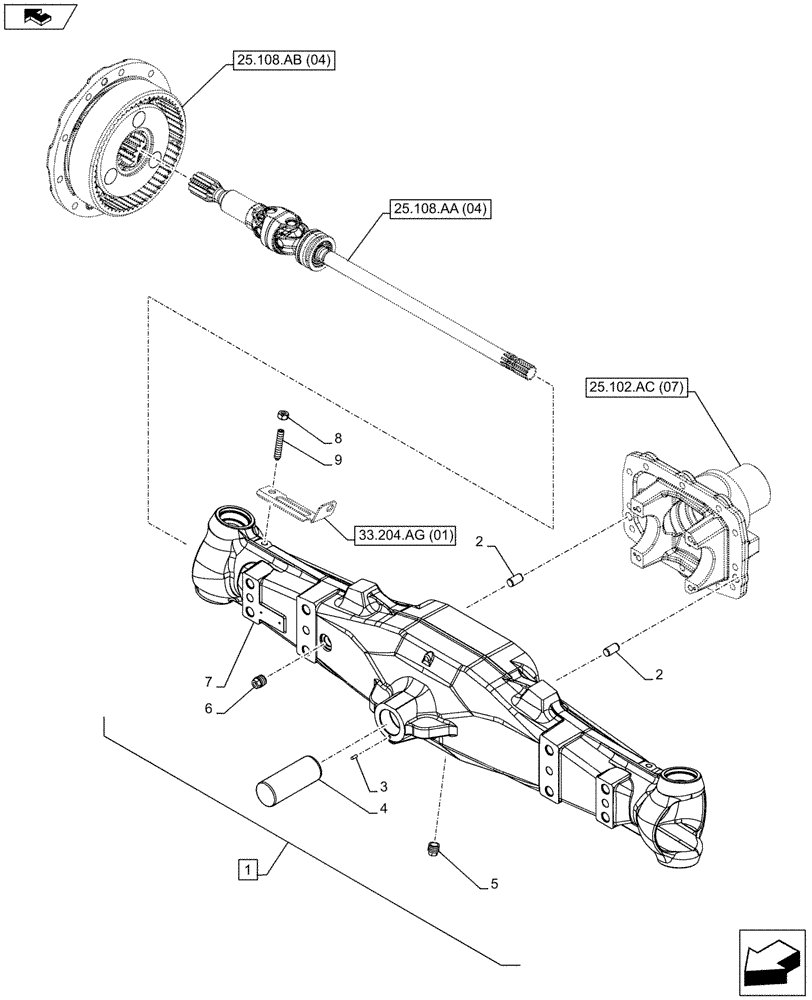

Схема запчастей Case IH FARMALL 105C - (25.100.AD[04]) - VAR - 338323 - 4WD FRONT AXLE, HOUSING, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (25) - FRONT AXLE SYSTEM
8
(04)
25.108.ab (04)
25.102.ac (07)
2
25.108.a
a
4
home
3
1
5
6
2
33.204.ag (01)
7
9

Артикул

Название

Примечание

Количество

1

84321714

AXLE HOUSING

ASSY, Incl 2 - 4, 7

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

47123533

PIN,52mm OD x 131mm L

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

9

87309002

SET SCREW

2шт.

Выбрано товаров: 9
