(21.112.AC[02]) - VAR - 744764 - TRANSMISSION HOUSING (32X16 HI-LO)

Запчасти Case IH FARMALL 105C (21.112.AC[02]) - VAR - 744764 - TRANSMISSION HOUSING (32X16 HI-LO) (21) - TRANSMISSION

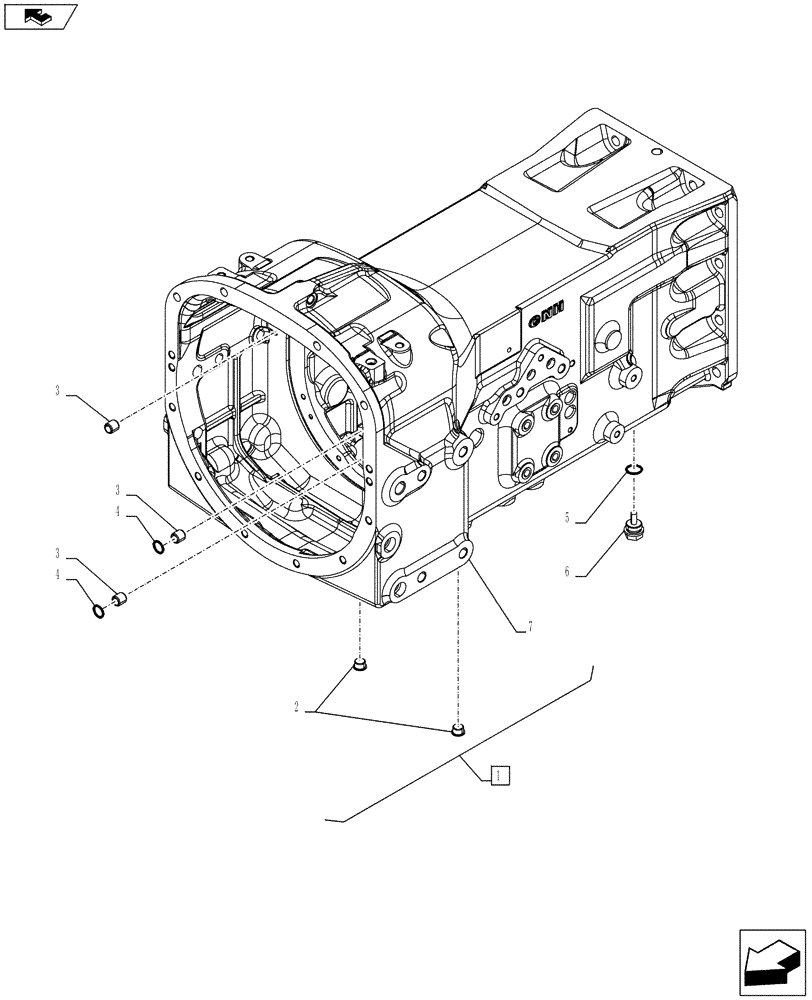

Схема запчастей Case IH FARMALL 105C - (21.112.AC[02]) - VAR - 744764 - TRANSMISSION HOUSING (32X16 HI-LO) (21) - TRANSMISSION
3
5
6
2
4
3
7
home
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ASSY, Housing, Incl 2, 3, 7

1шт.

2

590353

PLUG,15mm OD x 10mm High, Plastic

2шт.

3

5178778

SPACER,11mm ID x 15mm OD x 15mm L

3шт.

4

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

87584549

PLUG

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.
