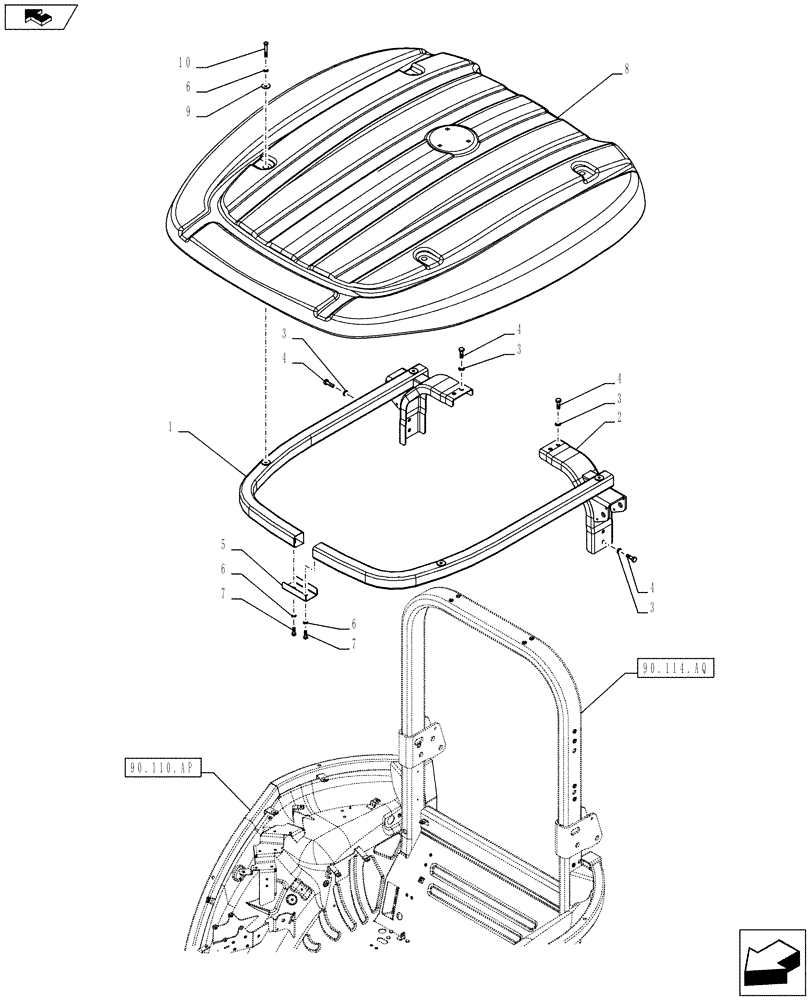

Запчасти Case IH FARMALL 105C (90.114.AR) - VAR - 334187, 334188, 334190, 334191 - ROPS CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84356395

BRACKET

1шт.

2

84356451

BRACKET

1шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

4

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

5

84356567

BRACKET

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

84359625

ROOF

1шт.

9

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

4шт.

10

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.
