Запчасти Case IH FARMALL 105C (90.116.AO) - VAR - 334190 - PLATFORM, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

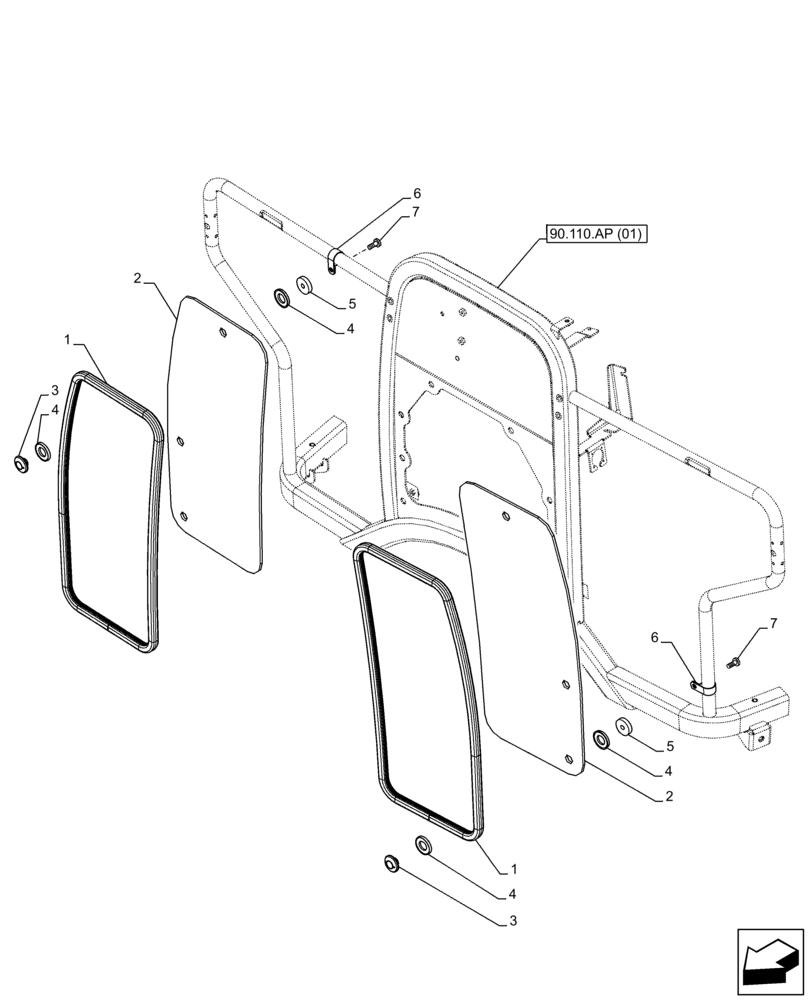

Схема запчастей Case IH FARMALL 105C - (90.116.AO) - VAR - 334190 - PLATFORM, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
2
4
3
5
6
90.110.ap (01)
4
4
7
4
3
1
2
1
7

Артикул

Название

Примечание

Количество

1

84359739

RUBBER SEAL,1610mm L

2шт.

2

84359737

GLASS

2шт.

3

5120540

KNOB

6шт.

4

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

12шт.

5

47130062

SPACER,9mm ID x 35mm OD x 8mm L

35mm OD x 9mm ID x 8mm Thk

6шт.

6

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

7

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

6шт.

Выбрано товаров: 7
