Запчасти Case IH FARMALL 105C (41.216.AV[04]) - VAR - 390328, 743559, 744580, 744581, 744990 - HYDRAULIC STEERING, CYLINDER, LINE, POWERSHUTTLE 4WD (41) - STEERING

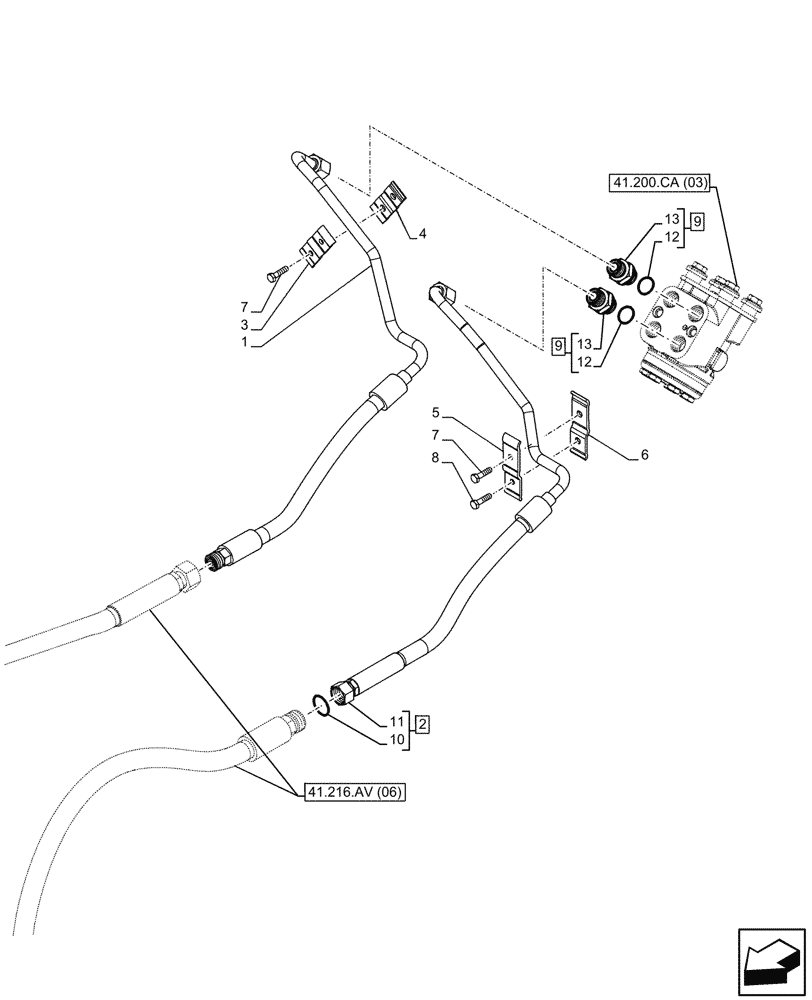

Схема запчастей Case IH FARMALL 105C - (41.216.AV[04]) - VAR - 390328, 743559, 744580, 744581, 744990 - HYDRAULIC STEERING, CYLINDER, LINE, POWERSHUTTLE 4WD (41) - STEERING
41.200.ca (03)
13
13
12
8
3
7
12
1
6
11
5
9
2
7
10
4
9
41.216.av (06)

Артикул

Название

Примечание

Количество

1

47581258

PIPE

to Steering Cylinder

1шт.

2

47581260

PIPE

to Steering Cylinder, ASSY, Incl 10 , 11

1шт.

3

84263886

BRACKET

1шт.

4

84313880

BRACKET

1шт.

5

84473566

BRACKET

1шт.

6

84473562

BRACKET

1шт.

7

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

3шт.

8

10902311

BOLT,Hex, M6 x 18mm, Cl 5.8, Full Thd

1шт.

9

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

1/2 BSPP A13/16 - 16 ORSF, ASSY, Incl 12 (Qty 1), 13 (Qty 1)

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

Выбрано товаров: 13
