Запчасти Case IH FARMALL 105C (41.200.AA [01]) - VAR - 330581 - STEERING LINE, POWERSHUTTLE 2WD (41) - STEERING

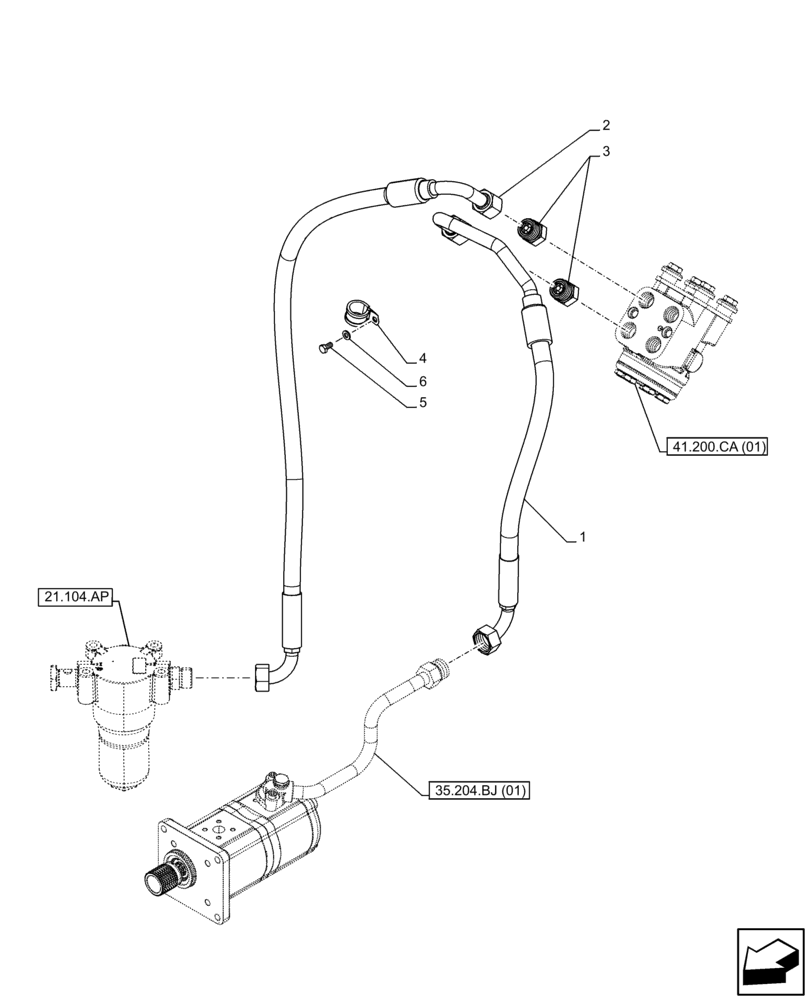

Схема запчастей Case IH FARMALL 105C - (41.200.AA [01]) - VAR - 330581 - STEERING LINE, POWERSHUTTLE 2WD (41) - STEERING
21.104.ap
2
5
35.204.bj (01)
3
4
41.200.ca (01)
1
6

Артикул

Название

Примечание

Количество

1

47594704

PIPE

To Steering Pump, Delivery

1шт.

2

47615285

PIPE

To Steering Pump, Return

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

1-14 ORFS 1/2-14 BSPP ORB

2шт.

4

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

Выбрано товаров: 6
