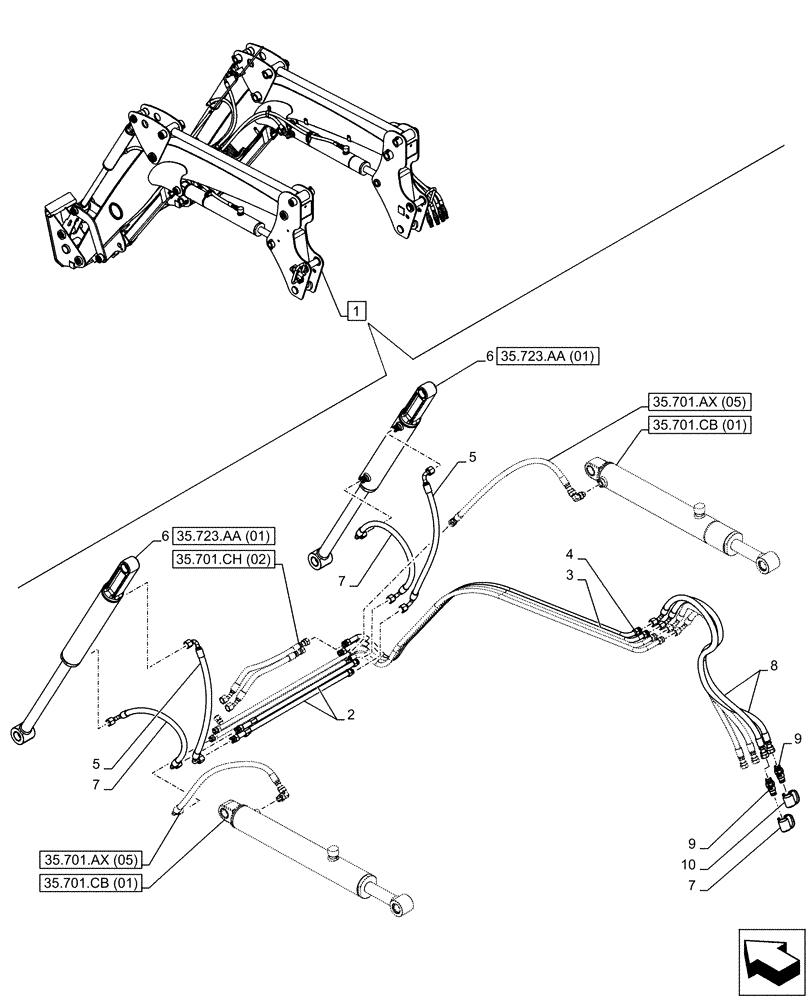

Запчасти Case IH FARMALL 105C (35.723.AB[04]) - VAR - 336735, 336739 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

47649271

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

1

47649265

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

2

47612279

HYD TUBE

Front Bucket Cylinder

2шт.

3

47608235

HYD TUBE

Front Bucket Diverter

1шт.

4

47608236

HYD TUBE

Front Bucket Diverter

1шт.

5

84406397

FLEXIBLE HOSE

Front Bucket Cylinder, Head side

2шт.

6

47406818

BUCKET CYLINDER

ASSY

2шт.

7

47406824

FLEXIBLE HOSE

Front Bucket Cylinder, Rod side

2шт.

8

84406192

FLEXIBLE HOSE,1250mm L

Front Loader

2шт.

9

84406394

FITTING

2шт.

10

84406402

PLASTIC PLUG

Blue

1шт.

11

84406401

PLASTIC PLUG

Red

1шт.
