Запчасти Case IH FARMALL 105C (35.701.CH[01]) - VAR - 336731, 336733, 336741, 336743 - LOADER BUCKET, VALVE, PIPE (35) - HYDRAULIC SYSTEMS

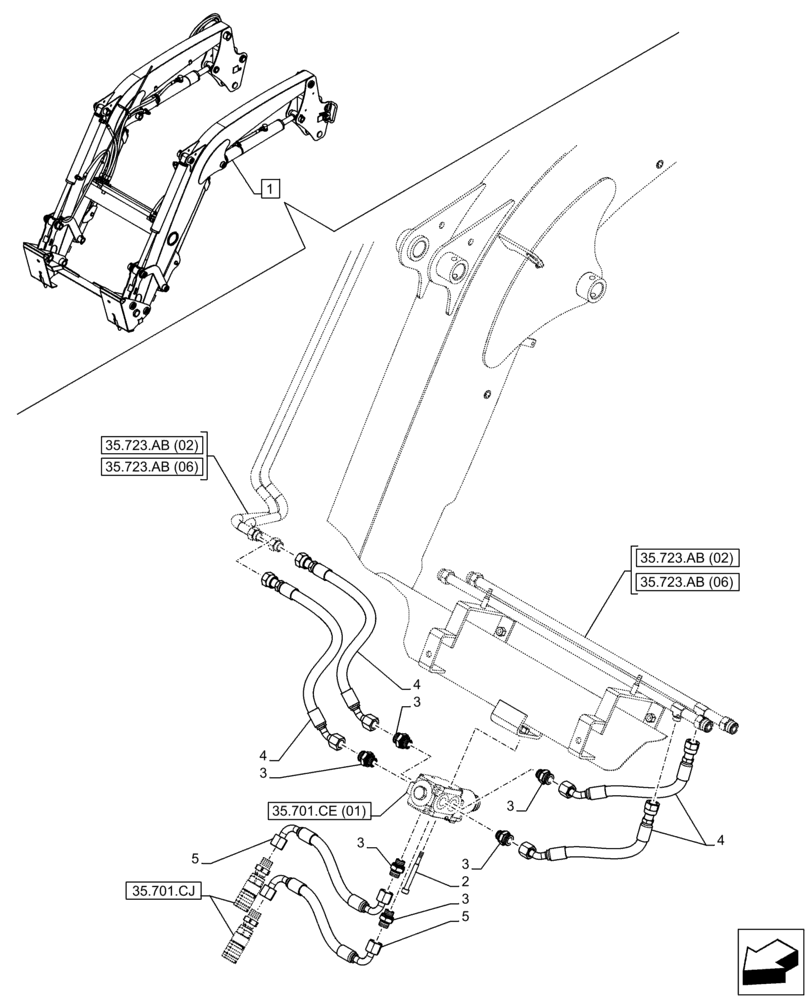

Схема запчастей Case IH FARMALL 105C - (35.701.CH[01]) - VAR - 336731, 336733, 336741, 336743 - LOADER BUCKET, VALVE, PIPE (35) - HYDRAULIC SYSTEMS
4
3
35.723.ab (02)
35.701.ce (01)
2
35.723.ab (06)
4
1
3
35.723.ab (06)
35.701.cj
5
3
3
3
3
35.723.ab (02)
5
4

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

1

47592521

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336741

1шт.

1

47592519

LOADER

ASSY

1шт.

Front Loader (HEAVY) with 4 couplers, with Diverter - EU Tool Attach., Var. 336743

1шт.

2

14306021

HEX SOC SCREW,M6 x 50mm, Cl 8.8

2шт.

3

47612292

FITTING

6шт.

4

47614401

HOSE

Front Loader Diverter

4шт.

5

47612280

HOSE

to Quick Attach Coupler

2шт.

Выбрано товаров: 12
