Запчасти Case IH FARMALL 105C (35.701.AX[07]) - VAR - 335490, 337490, 336744, 336746 - LOADER ARM, BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

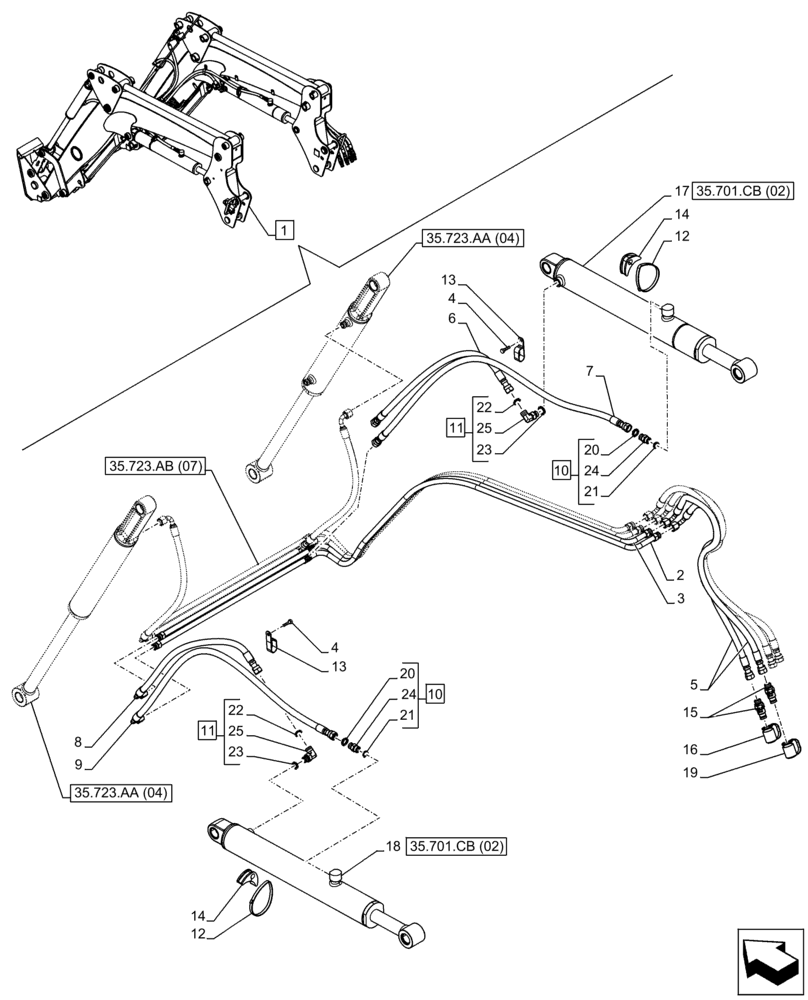

Схема запчастей Case IH FARMALL 105C - (35.701.AX[07]) - VAR - 335490, 337490, 336744, 336746 - LOADER ARM, BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS
4
24
23
35.723.aa (04)
14
11
20
14
20
6
12
13
5
24
2
15
4
9
22
35.723.aa (04)
25
11
10
13
21
12
19
1
21
10
16
25
23
8
7
3
35.723.ab (07)
35.701.cb (02)
17
35.701.cb (02)
22
18

Артикул

Название

Примечание

Количество

1

84467881

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 335490, 337490, 336744

1шт.

1

47504906

LOADER

ASSY

1шт.

Front Loader (HEAVY, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336746

1шт.

2

84575173

PIPE

Front Loader Cylinder

1шт.

3

84575176

PIPE

Front Loader Cylinder

1шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

84406192

FLEXIBLE HOSE,1250mm L

Front Loader

2шт.

6

84575180

HOSE

Front Loader Cylinder, RH, Head side

1шт.

7

84575183

HOSE

Front Loader Cylinder, RH, Rod side

1шт.

8

84575184

HOSE

Front Loader Cylinder, LH, Head side

1шт.

9

84575185

HOSE

Front Loader Cylinder, LH, Rod side

1шт.

10

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 20, 21, 24

2шт.

11

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 22, 23, 25

2шт.

12

84406396

FIXING STRIP

2шт.

13

5145401

CLAMP

2шт.

14

85805567

BLOCK

2шт.

15

84406394

FITTING

2шт.

16

84406395

PLASTIC PLUG

Yellow

1шт.

17

84575190

LIFT CYLINDER

RH

1шт.

18

84575192

LIFT CYLINDER

LH

1шт.

19

84406403

PLASTIC PLUG

Green

1шт.

20

81845030

NUT

2шт.

21

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

22

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

25

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 11

2шт.

Выбрано товаров: 28
