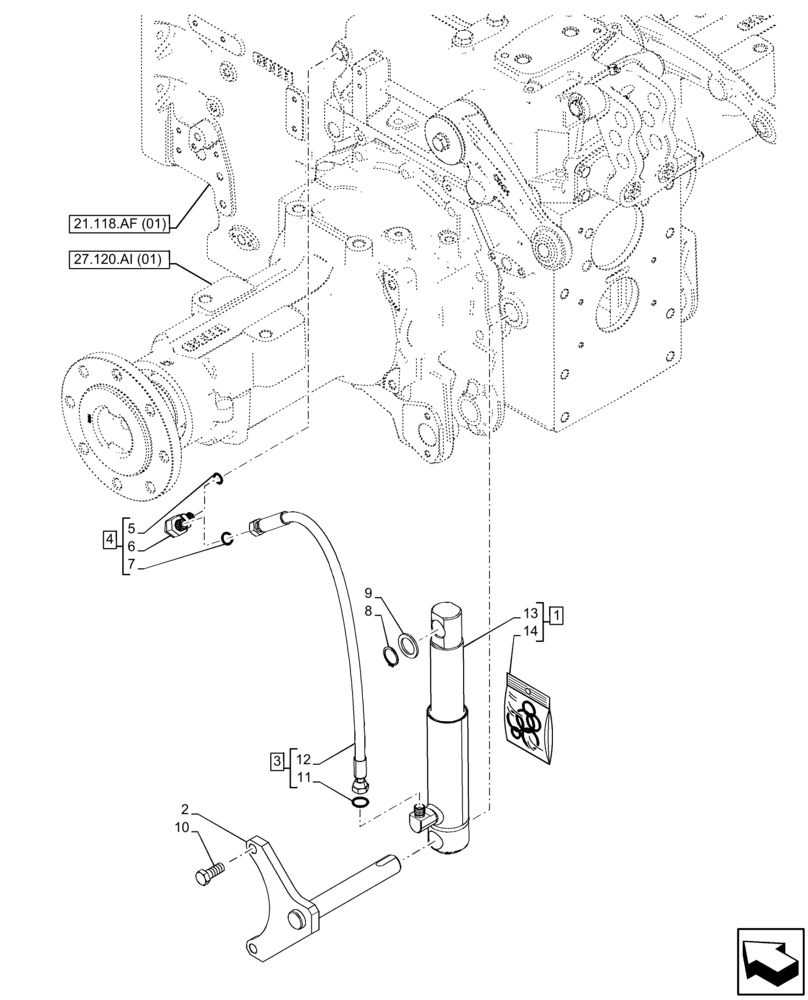

Запчасти Case IH FARMALL 105C (35.116.AH) - VAR - 332785, 743597 - 3 POINT HITCH, LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

84327427

LIFT CYLINDER,50mm Rod, 126mm Stroke

1шт.

2

84329038

SUPPORT

1шт.

3

84517063

FLEXIBLE HOSE,7.9mm ID x 650mm L, SAE 100R1

ASSY, Incl 11, 12

1шт.

4

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

90° Connector, Incl in 4

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

11067676

SNAP RING,M28, Ext

1шт.

9

44018747

WASHER,28mm ID x 40mm OD x 3mm Thk

1шт.

10

86642441

BOLT,Hex, M14 x 1.5 x 35, 8.8, Full Thd

2шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

13

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

14

84482135

SEAL KIT

for Cylinder Only

1шт.
