Запчасти Case IH FARMALL 105C (35.104.AA[02]) - VAR- 743563 - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

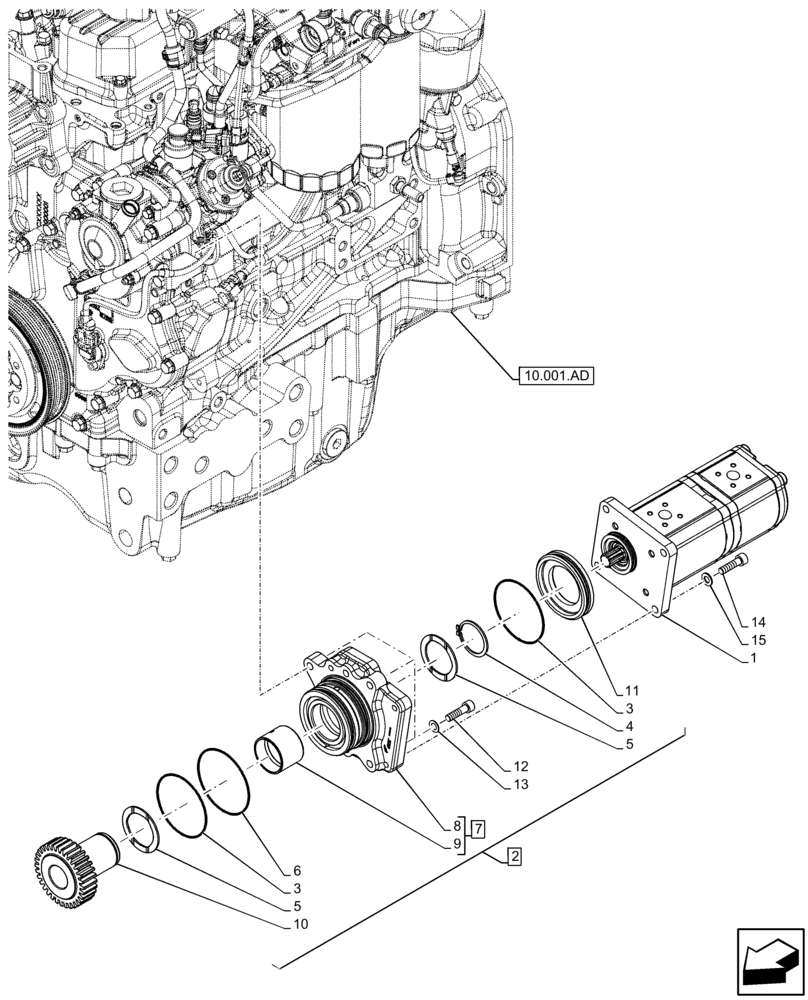

Схема запчастей Case IH FARMALL 105C - (35.104.AA[02]) - VAR- 743563 - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
1
5
9
7
15
4
5
11
3
8
6
10.001.ad
2
14
13
10
12
3

Артикул

Название

Примечание

Количество

1

84383668

HYDRAULIC PUMP,Double Gear, 11CC / 19CC

19 + 11

1шт.

2

84529400

DRIVE

ASSY, Incl 3 - 13

1шт.

3

14465281

O-RING,2.984" ID x 3.262" OD x 0.139"

2шт.

4

11068976

SNAP RING,M42, Ext

1шт.

5

84529401

WASHER,18mm ID x 42mm OD x 1.8mm Thk

2шт.

6

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

1шт.

7

84529398

DRIVE

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Adapter, Incl in 7

1шт.

9

84529392

BUSHING,142.03mm ID x 145.97mm OD x 35mm L

1шт.

10

84415690

PTO SHAFT,9T Internal/32T External

1шт.

11

84415688

RING,50mm ID x 70.5mm OD x 13.3mm Thk

1шт.

12

14306531

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

13

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

14

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

Выбрано товаров: 15
