Запчасти Case IH FARMALL 105C (31.104.AR[01]) - VAR - 330581, 390328, 743559 - PTO, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

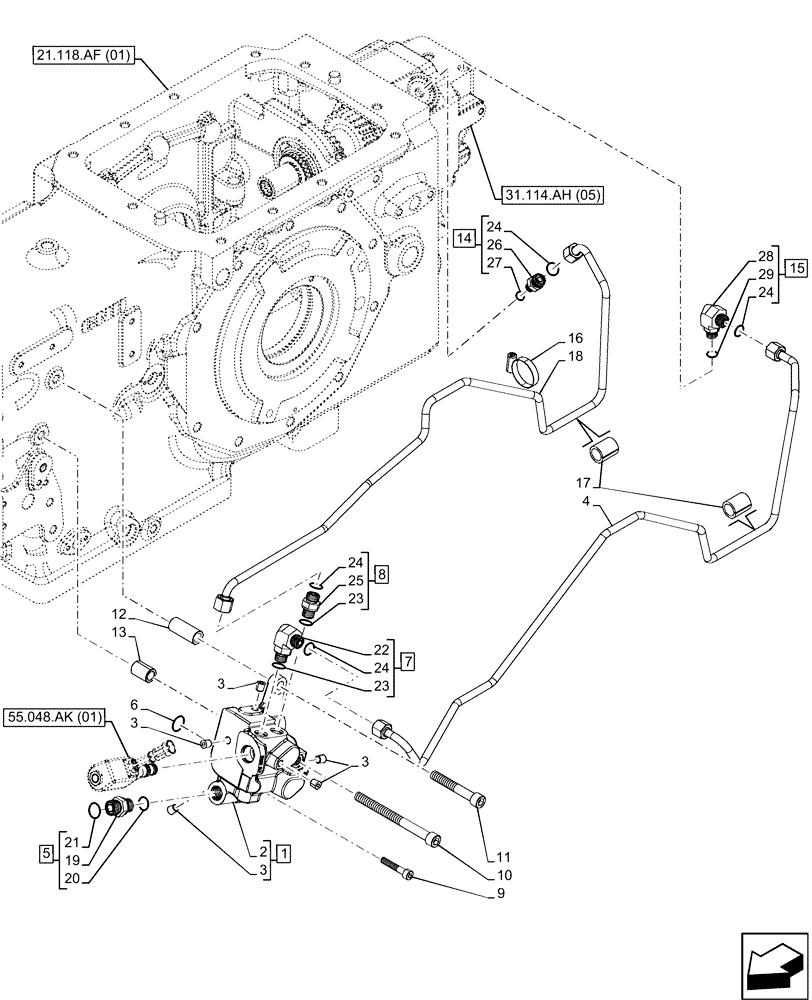

Схема запчастей Case IH FARMALL 105C - (31.104.AR[01]) - VAR - 330581, 390328, 743559 - PTO, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF
18
31.114.ah (05)
55.048.ak (01)
17
10
23
3
19
12
26
6
2
3
3
20
24
14
29
4
3
23
8
7
16
24
24
5
15
1
21
11
9
28
22
27
21.118.af (01)
24
25
13

Артикул

Название

Примечание

Количество

1

84366532

VALVE BODY

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

5шт.

4

47569992

PIPE

From control Valve to PTO Brake

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 19 - 21

1шт.

6

638-53200

O-RING,2.65mm Thk x 20mm ID, Cl 5, 75 Duro

2.65W x 20.0

1шт.

7

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 22, 23 (Qty 1), 24 (Qty 1)

1шт.

8

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 23(Qty 1), 24 (Qty 1), 25

1шт.

9

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

1шт.

10

14332921

SCREW,Hex M12 x 1.25 x 140mm

1шт.

11

14332121

HEX SOC SCREW,M12 x 1.25 x 80mm, Cl 8.8

2шт.

12

84366578

SPACER,13mm ID x 20mm OD x 47mm L

20X47

4шт.

13

84364460

SPACER,13mm ID x 20mm OD x 29mm L

20X29

1шт.

14

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 24(Qty 1), 26, 27

1шт.

15

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 24 (Qty 1), 28, 29

1шт.

16

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

17

4959735

SPACER,18mm ID x 25mm OD x 30mm L

25 x 30

1шт.

18

47569991

PIPE,1298mm L

From Control Valve to PTO 1298mm

2шт.

19

NSS

NOT SOLD SEPARAT

Straight Connector, Incl in 5

1шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

25

NSS

NOT SOLD SEPARAT

Straight Connector, Incl in 8

1шт.

26

NSS

NOT SOLD SEPARAT

Straight Connector, Incl in 14

1шт.

27

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

29

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 29
