(31.101.AC[04]) - VAR - 390328, 743559 - 4WD, W/ MECHANICAL ENGAGEMENT, CONTROL LEVER

Запчасти Case IH FARMALL 105C (31.101.AC[04]) - VAR - 390328, 743559 - 4WD, W/ MECHANICAL ENGAGEMENT, CONTROL LEVER (31) - IMPLEMENT POWER TAKE OFF

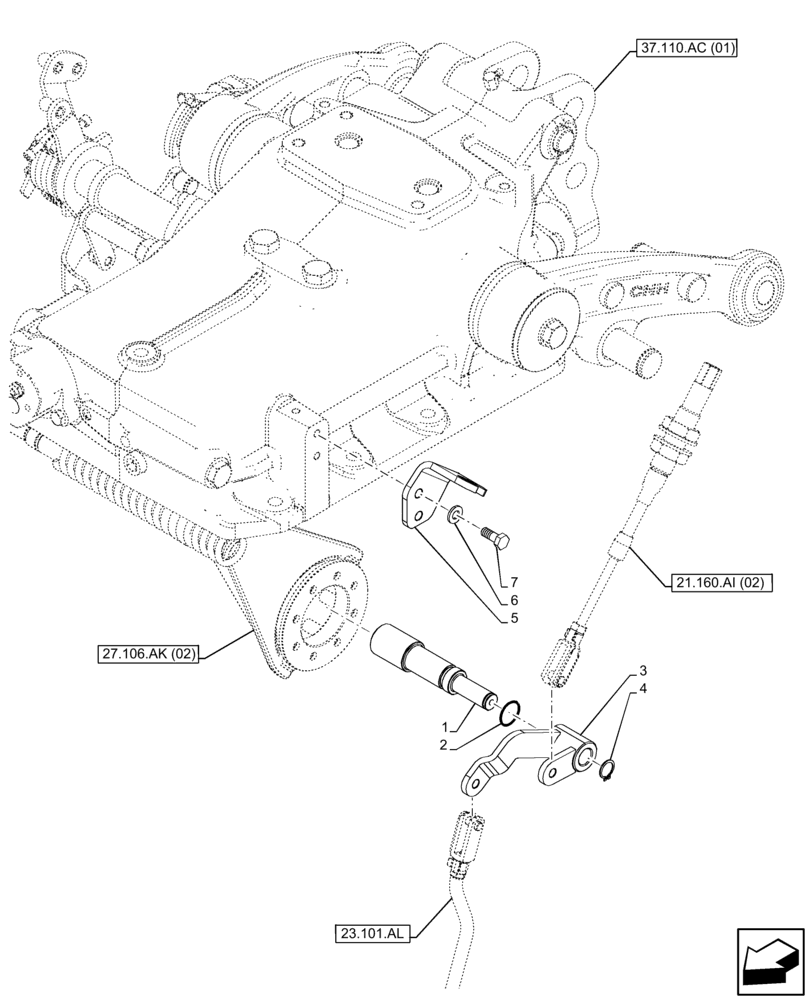

Схема запчастей Case IH FARMALL 105C - (31.101.AC[04]) - VAR - 390328, 743559 - 4WD, W/ MECHANICAL ENGAGEMENT, CONTROL LEVER (31) - IMPLEMENT POWER TAKE OFF
6
37.110.ac (01)
7
21.160.ai (02)
27.106.ak (02)
3
4
2
23.101.al
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84277252

PIN,30mm OD x 100mm L

1шт.

2

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

3

47538581

LEVER

1шт.

4

11066471

SNAP RING,M16, Ext

1шт.

5

84389988

BRACKET

1шт.

6

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

2шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
