Запчасти Case IH FARMALL 105C (27.106.AK[01]) - VAR - 390381 - DIFFERENTIAL LOCK, MECHANICAL (27) - REAR AXLE SYSTEM

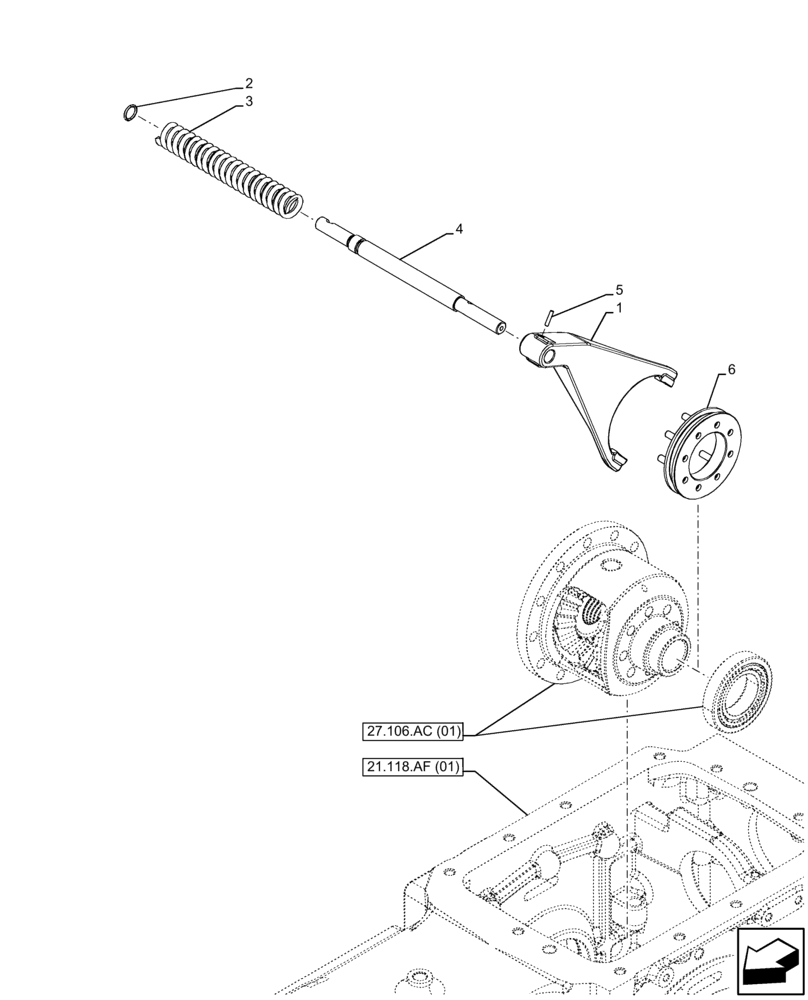

Схема запчастей Case IH FARMALL 105C - (27.106.AK[01]) - VAR - 390381 - DIFFERENTIAL LOCK, MECHANICAL (27) - REAR AXLE SYSTEM
2
27.106.ac (01)
1
5
6
3
21.118.af (01)
4

Артикул

Название

Примечание

Количество

1

84277307

FORK

Differential Lock

1шт.

2

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

3

5114581

SPRING,27mm OD x 220mm

1шт.

4

84277243

ROD

Differential Lock

1шт.

5

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

6

5117626

DRIVE BUSHING

1шт.

Выбрано товаров: 6
