Запчасти Case IH FARMALL 105C (25.400.AM) - VAR - 330581 - FRONT AXLE, BODY, 2WD (25) - FRONT AXLE SYSTEM

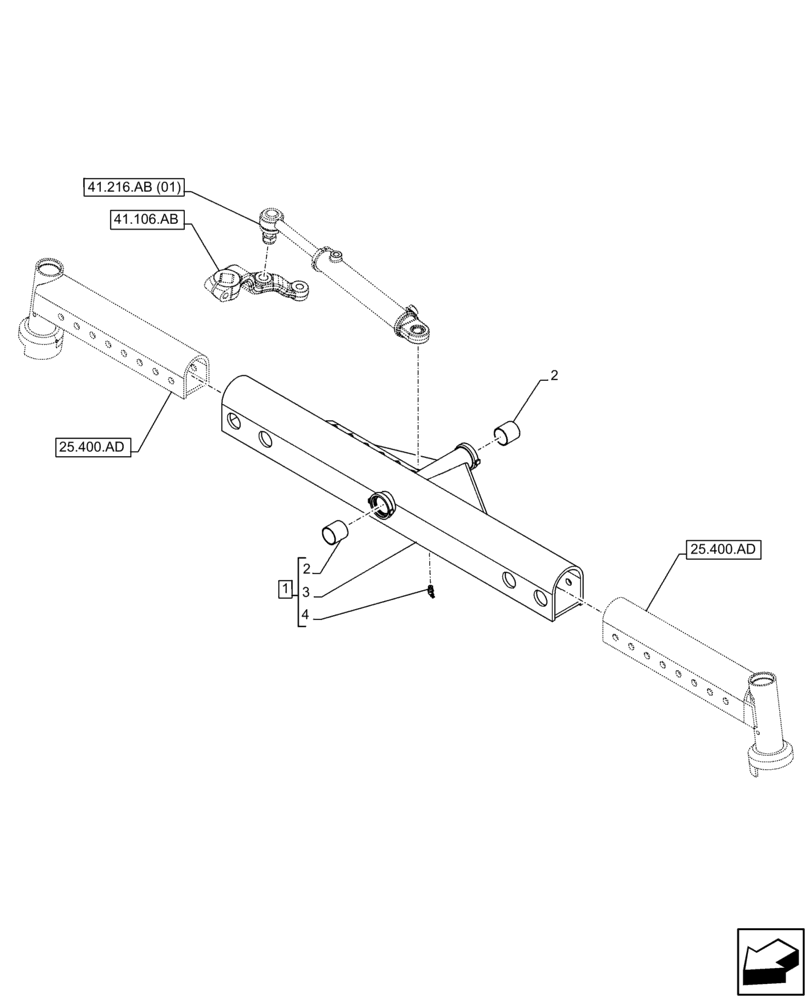

Схема запчастей Case IH FARMALL 105C - (25.400.AM) - VAR - 330581 - FRONT AXLE, BODY, 2WD (25) - FRONT AXLE SYSTEM
1
41.106.ab
3
41.216.ab (01)
4
2
25.400.ad
25.400.ad
2

Артикул

Название

Примечание

Количество

1

84168696

AXLE HOUSING

ASSY, Incl 2 - 4

1шт.

2

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

2шт.

3

87699324

AXLE HOUSING

1шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

Выбрано товаров: 4
