Запчасти Case IH FARMALL 105C (25.108.AB[01]) - VAR - 390328, 743559, 744580, 744990 - FRONT AXLE, PLANETARY REDUCER, 4WD (25) - FRONT AXLE SYSTEM

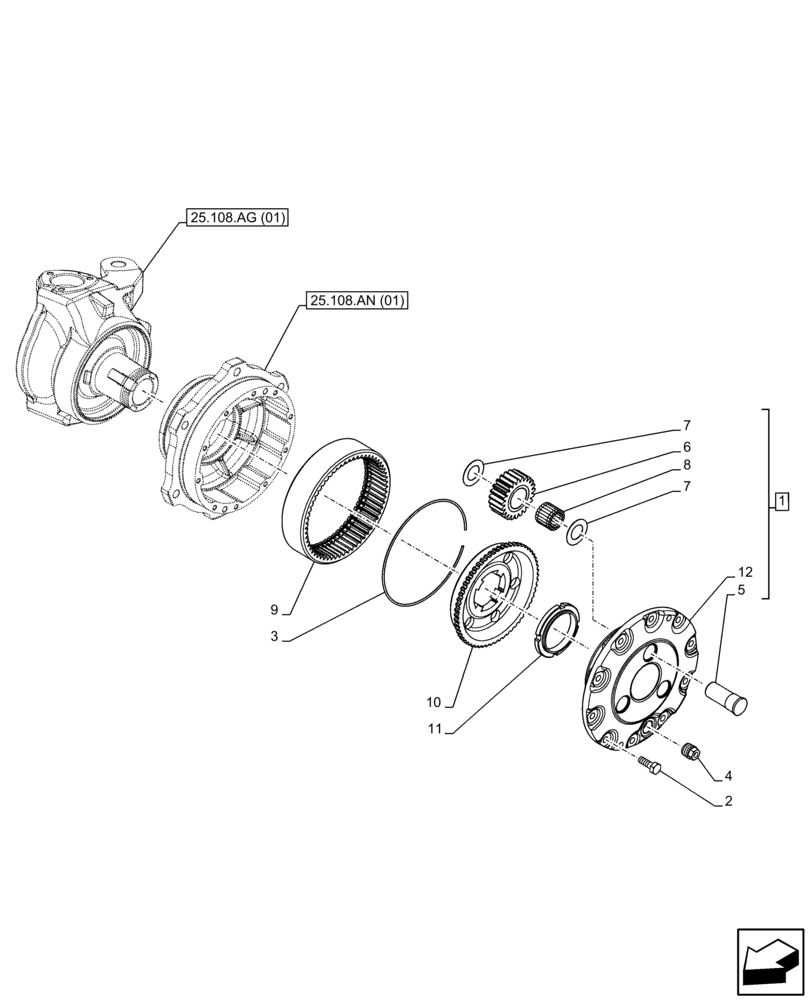

Схема запчастей Case IH FARMALL 105C - (25.108.AB[01]) - VAR - 390328, 743559, 744580, 744990 - FRONT AXLE, PLANETARY REDUCER, 4WD (25) - FRONT AXLE SYSTEM
25.108.ag (01)
7
25.108.an (01)
2
9
11
1
10
8
6
5
3
7
12
4

Артикул

Название

Примечание

Количество

1

5181047

CARRIER

ASSY, Incl 5 - 8, 12

1шт.

2

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

10шт.

3

5165162

SNAP RING,M50, Int

1шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

5

5181050

PIN,27mm OD x 63.5mm L

3шт.

6

5169137

GEAR,23T

3шт.

7

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

6шт.

8

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

3шт.

9

5165273

RING GEAR,60T

Reducer

1шт.

10

5173284

GEAR,60T

1шт.

11

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

LH

1шт.

11

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

RH

1шт.

12

5181049

SUPPORT

1шт.

Выбрано товаров: 13
