Запчасти Case IH FARMALL 105C (25.102.AC[06]) - VAR - 390328, 743559, 744580, 744990 - FRONT AXLE, BEVEL GEAR, 4WD (25) - FRONT AXLE SYSTEM

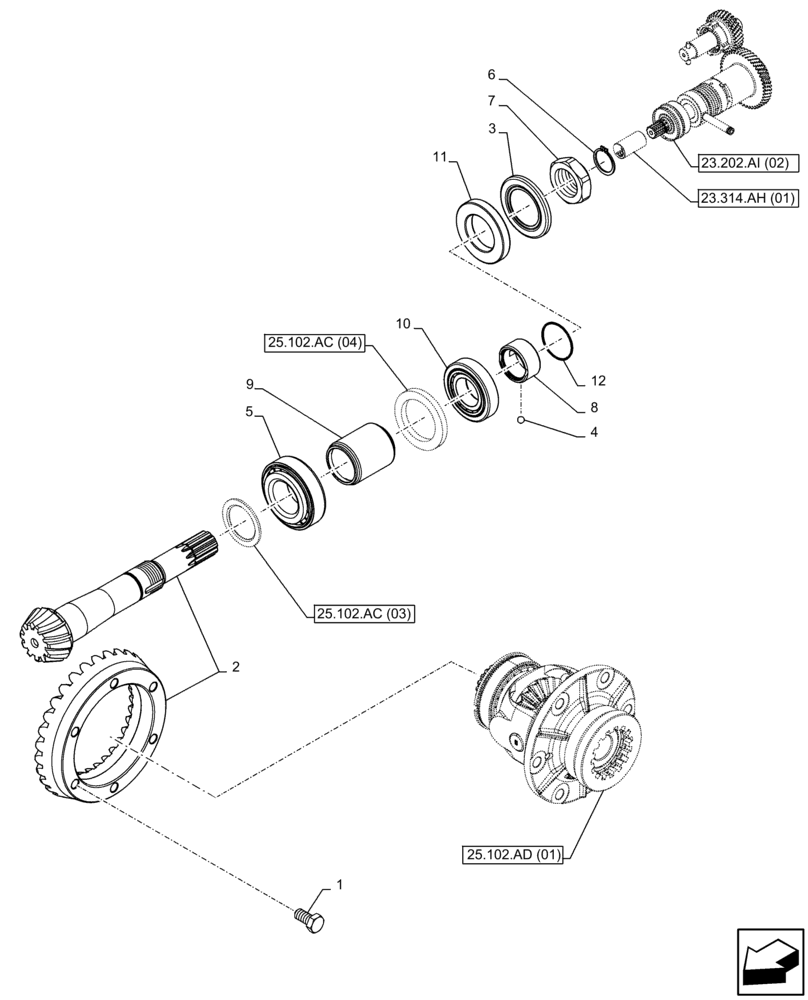

Схема запчастей Case IH FARMALL 105C - (25.102.AC[06]) - VAR - 390328, 743559, 744580, 744990 - FRONT AXLE, BEVEL GEAR, 4WD (25) - FRONT AXLE SYSTEM
4
5
1
9
25.102.ac (04)
6
10
23.202.ai (02)
25.102.ad (01)
11
2
23.314.ah (01)
25.102.ac (03)
7
12
8
3

Артикул

Название

Примечание

Количество

1

84393698

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

M12 x 1.25 x 25 ZNT

6шт.

2

5173886

BEVEL GEAR,30T

RATIO 10/30

1шт.

3

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

4

20419320

BALL,6.35mm OD

1шт.

5

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

6

11067776

SNAP RING,M29, Ext

1шт.

7

5143242

RING NUT,M35 x 1.5

1шт.

8

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

9

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

10

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

11

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

12

14454380

O-RING,31.47mm ID x 1.78" Width

1шт.

Выбрано товаров: 12
