Запчасти Case IH FARMALL 105C (25.102.AC[05]) - VAR - 390328, 743559, 744580, 744990 - FRONT AXLE, DIFFERENTIAL, CARRIER, 4WD (25) - FRONT AXLE SYSTEM

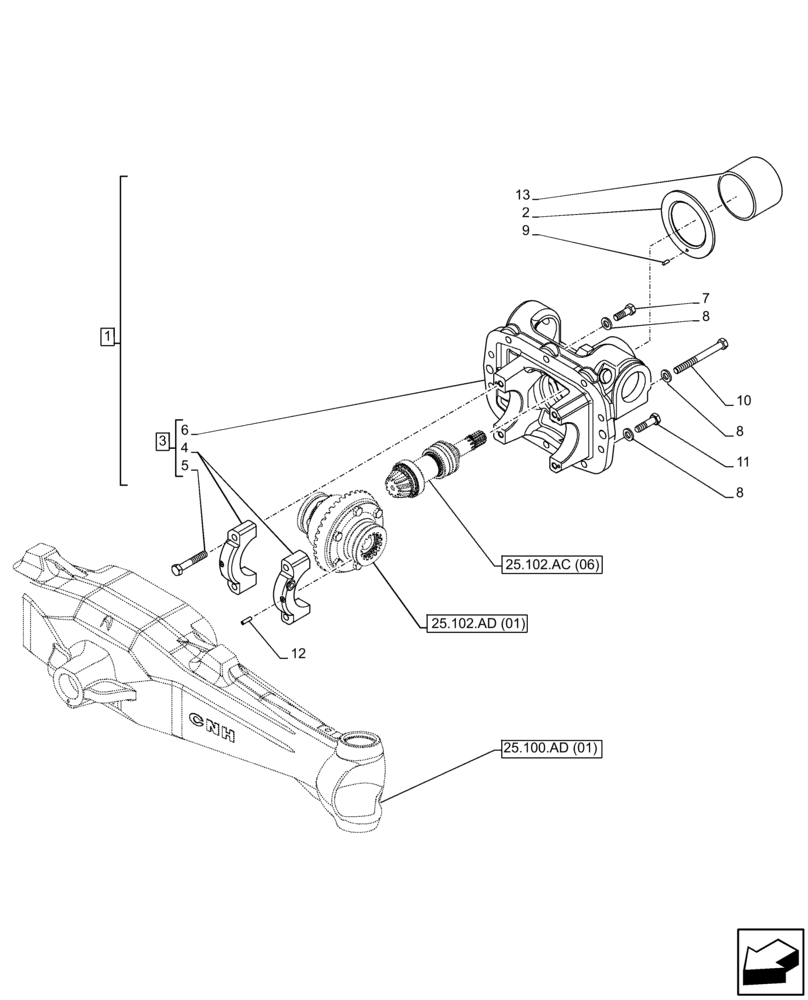

Схема запчастей Case IH FARMALL 105C - (25.102.AC[05]) - VAR - 390328, 743559, 744580, 744990 - FRONT AXLE, DIFFERENTIAL, CARRIER, 4WD (25) - FRONT AXLE SYSTEM
25.102.ad (01)
25.102.ac (06)
8
7
4
13
9
8
11
2
6
10
3
12
5
25.100.ad (01)
1
8

Артикул

Название

Примечание

Количество

1

84371874

COVER ASSY

ASSY, Incl 2 - 4, 7

1шт.

2

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

3

84371875

COVER

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing Cap, Incl in 3

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 3

1шт.

7

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

4шт.

8

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

10шт.

9

4966244

PIN,5mm OD x 15mm L

1шт.

10

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

1шт.

11

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

5шт.

12

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

13

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

Выбрано товаров: 13
