Запчасти Case IH FARMALL 105C (23.314.AH[02]) - VAR - 743558 - 4WD DRIVE SHAFT, FRONT AXLE, GUARD (23) - FOUR WHEEL DRIVE SYSTEM

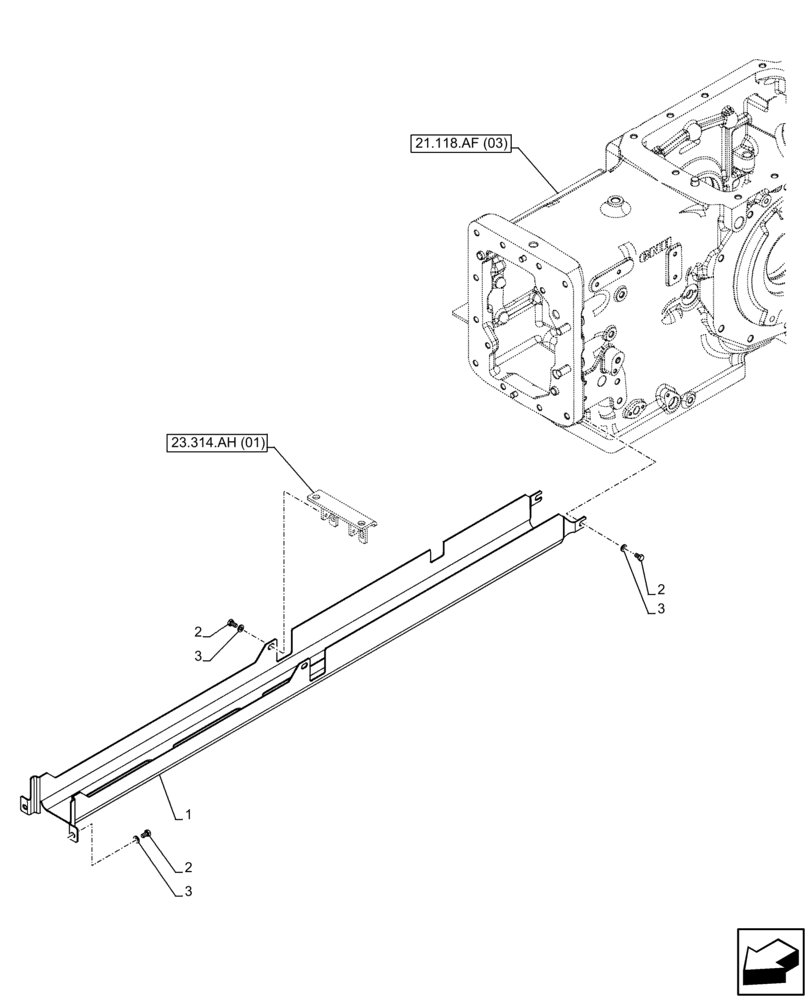

Схема запчастей Case IH FARMALL 105C - (23.314.AH[02]) - VAR - 743558 - 4WD DRIVE SHAFT, FRONT AXLE, GUARD (23) - FOUR WHEEL DRIVE SYSTEM
23.314.ah (01)
3
3
3
2
2
2
1
21.118.af (03)

Артикул

Название

Примечание

Количество

1

84413856

SHIELD

1шт.

2

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

Выбрано товаров: 3
