Запчасти Case IH FARMALL 105C (23.101.AF[01]) - VAR - 330581 - FRONT, WHEEL, DRIVE, GEAR 2WD, CAB (23) - FOUR WHEEL DRIVE SYSTEM

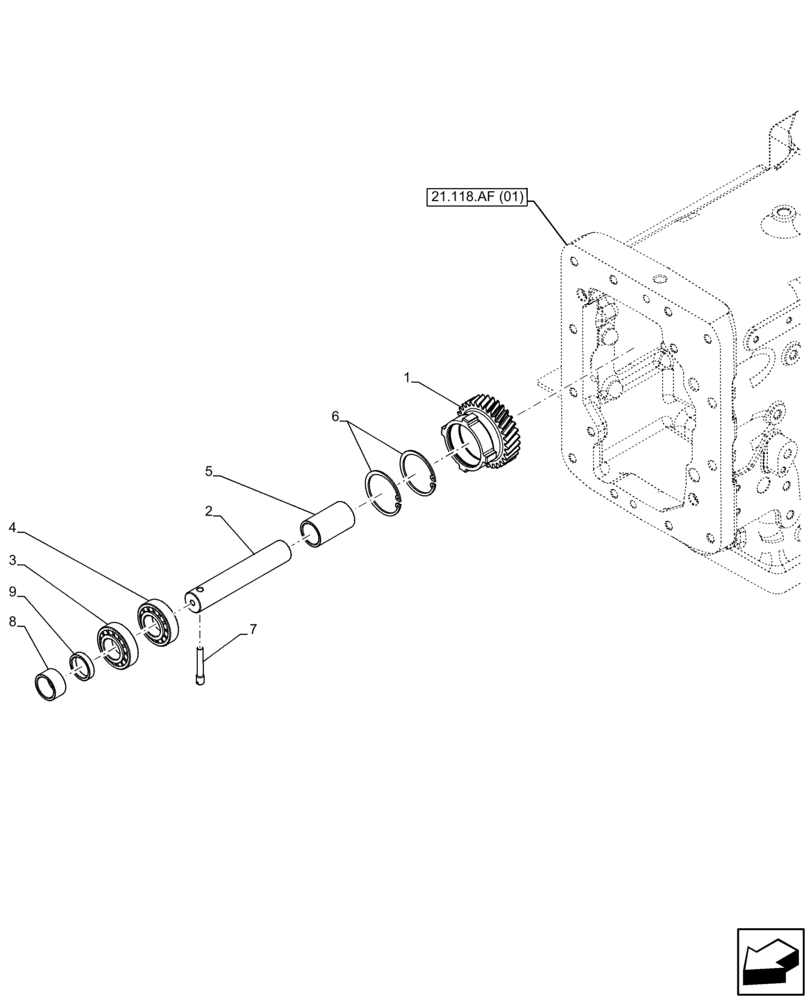

Схема запчастей Case IH FARMALL 105C - (23.101.AF[01]) - VAR - 330581 - FRONT, WHEEL, DRIVE, GEAR 2WD, CAB (23) - FOUR WHEEL DRIVE SYSTEM
21.118.af (01)
1
7
5
9
4
6
3
8
2

Артикул

Название

Примечание

Количество

1

84247777

GEAR,31T

1шт.

2

84247783

IDLE SHAFT

30 x 170

1шт.

3

20685450

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

1шт.

4

84339462

NEEDLE BEARING,30mm ID x 62mm OD x 16mm W

1шт.

5

84341932

SPACER,30mm ID x 38mm OD x 63.95mm L

38 x 64

1шт.

6

11061076

SNAP RING,M62, Int

2шт.

7

84337006

PIN,7.9mm OD x 57mm L

1шт.

8

84363422

SPACER,30.2mm ID x 38mm OD x 20mm L

38 x 20

1шт.

9

84391601

SPACER,30mm ID x 38mm OD x 6.5mm L

38 x 8.5

1шт.

Выбрано товаров: 9
