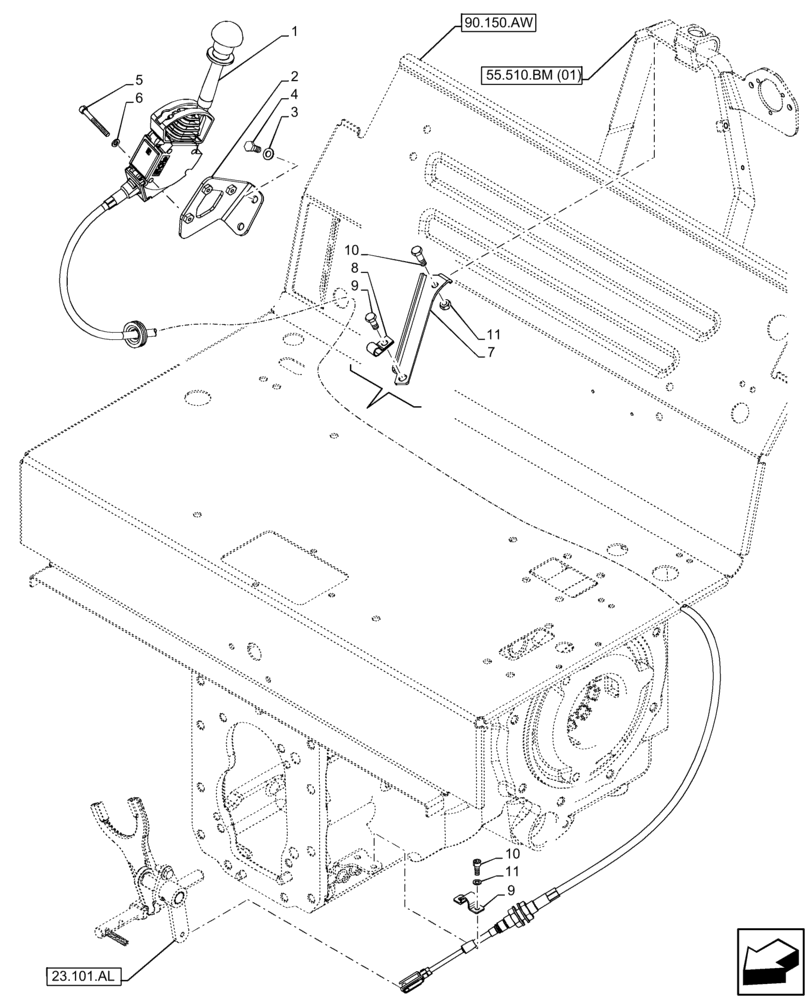

Запчасти Case IH FARMALL 105C (21.160.AI[01]) - VAR - 390328, 743559 - CREEPER, CONTROL LEVER, W/O CAB (21) - TRANSMISSION

1

47529953

CONTROL

Creeper Lever

1шт.

2

84357544

BRACKET

1шт.

3

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

8.4 x 16 x 1.6 MM CST RIV/EC8PL

2шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

5

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

3шт.

6

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

3шт.

7

47538506

BRACKET

1шт.

8

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
