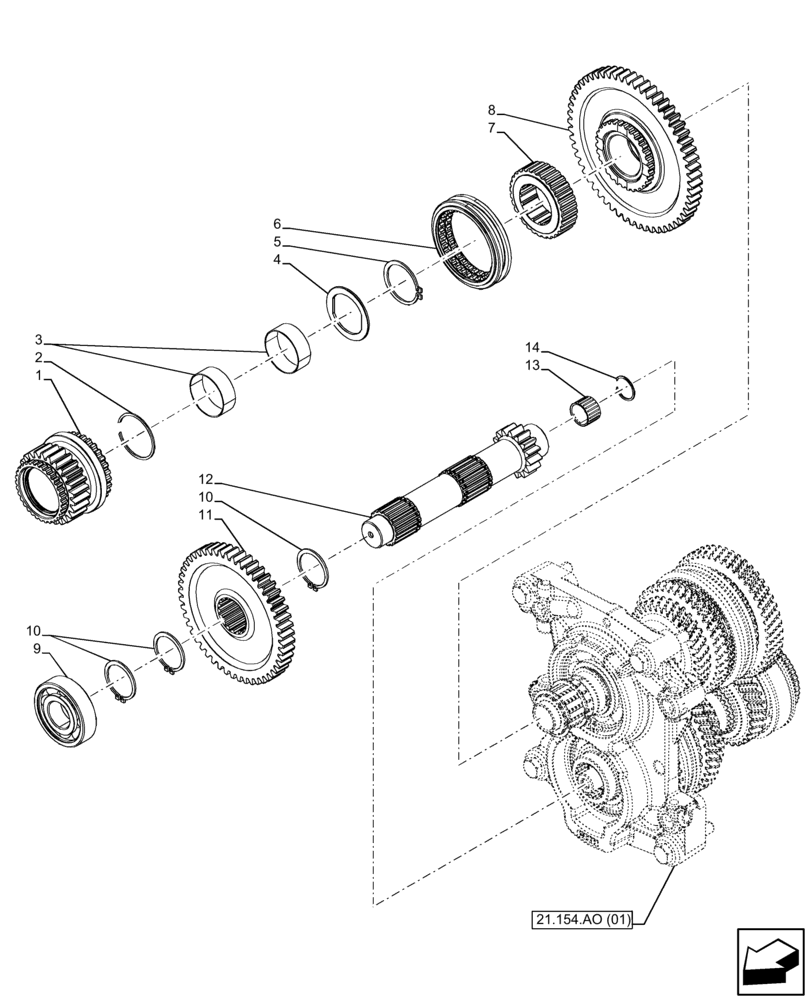

Запчасти Case IH FARMALL 105C (21.154.AO[05]) - VAR - 744576 - TRANSMISSION, REDUCTION, UNIT, CONTROL (12X12 CREEPER) (21) - TRANSMISSION

1

47365343

GEAR

DRIVE CREEPER

1шт.

2

84339643

LOCKING RING,47.2mm ID x 51.8mm OD x 1.5mm Thk

1шт.

3

5161805

NEEDLE BEARING,45mm ID x 50mm OD x 17mm W

2шт.

4

47365696

SHIM,45.1mm ID x 60mm OD x 2.5mm Thk

1шт.

5

11069076

SNAP RING,M45, Ext

1шт.

6

87370421

SLEEVE,Z30

1шт.

7

84327883

GEAR,14T Internal / 30T External

1шт.

8

47365388

GEAR,57T

COUPLER CREEPER

1шт.

9

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

1шт.

10

11068876

SNAP RING,M40, Ext

3шт.

11

84247707

GEAR,49T

DRIVEN CREEPER

1шт.

12

47365390

SHAFT

DRIVE CREEPER

1шт.

13

84339454

NEEDLE BEARING,22mm ID x 26mm OD x 17mm W

22 x 26 x 17

1шт.

14

84339475

LOCKING RING,26mm

SIZE 26

1шт.
