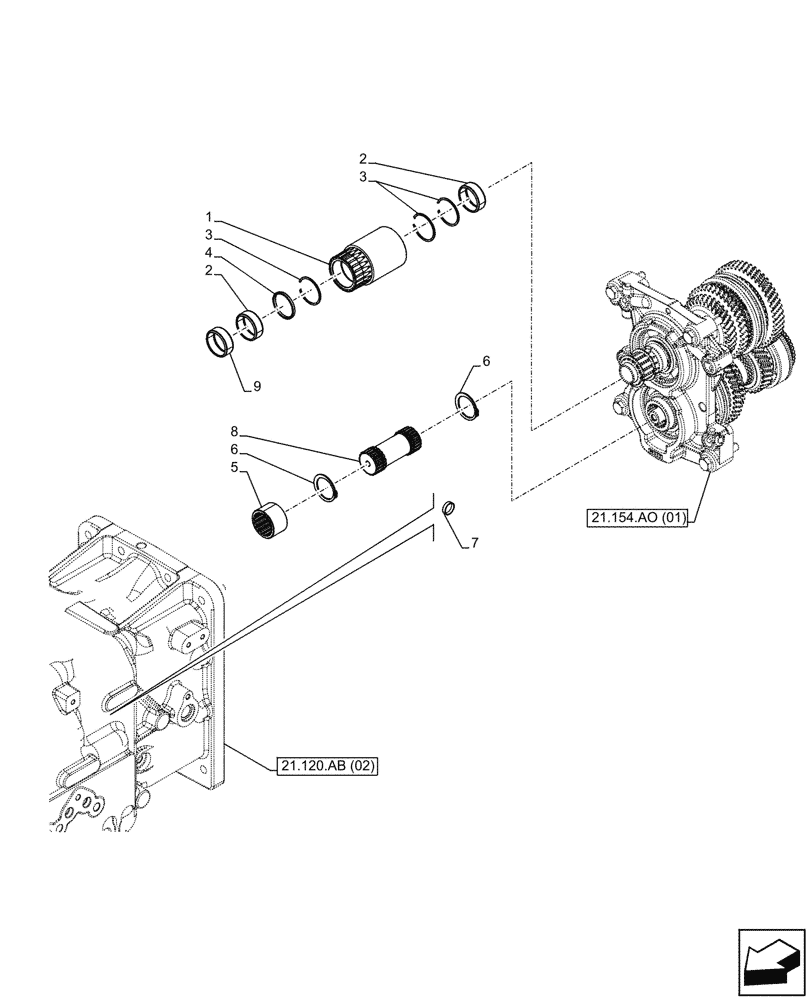

Запчасти Case IH FARMALL 105C (21.154.AO[04]) - VAR - 330276 - TRANSMISSION, REDUCTION, UNIT, CONTROL (POWERSHUTTLE - 12X12) (21) - TRANSMISSION

1

47372926

SLEEVE

, Years: -07-JUL-15

1шт.

Provide Together Sleeve P.N. 47724498, Washer P.N. 47704871 and Bearing Needle P.N. 84330698 (Qty 1)

1шт.

1

47724498

SLEEVE,45mm ID x 67mm OD x 178.1mm L

, Start Year: 08-JUL-15

1шт.

2

84330698

BEARING,Needle, 40mm ID x 42mm OD x 16.8mm W

, Start Year: 08-JUL-15

2шт.

Qty 2 for P.N. 47724498, Qty 1 for P.N. 47372926

1шт.

3

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

SIZE 45

3шт.

4

47704871

WASHER,40mm ID x 45mm OD x 4mm Thk

1шт.

5

84336997

GEAR,18T

DRIVEN CREEPER

1шт.

6

370006

SNAP RING,M40, Ext

2шт.

7

14328701

PLUG,M20, Tapered

1шт.

8

47372927

SHAFT

DRIVEN CREEPER

1шт.

9

47704865

NEEDLE BEARING

, Years: -07-JUL-15

1шт.

In case of replacement of this Part Number provide Sleeve P.N. 47724498 together Bearing Needle P.N. 84330698 (Qty 1)

1шт.
