Запчасти Case IH FARMALL 105C (21.154.AA[03]) - VAR - 330276, 334176 - CLUTCH (12X12 HYD PTO) (21) - TRANSMISSION

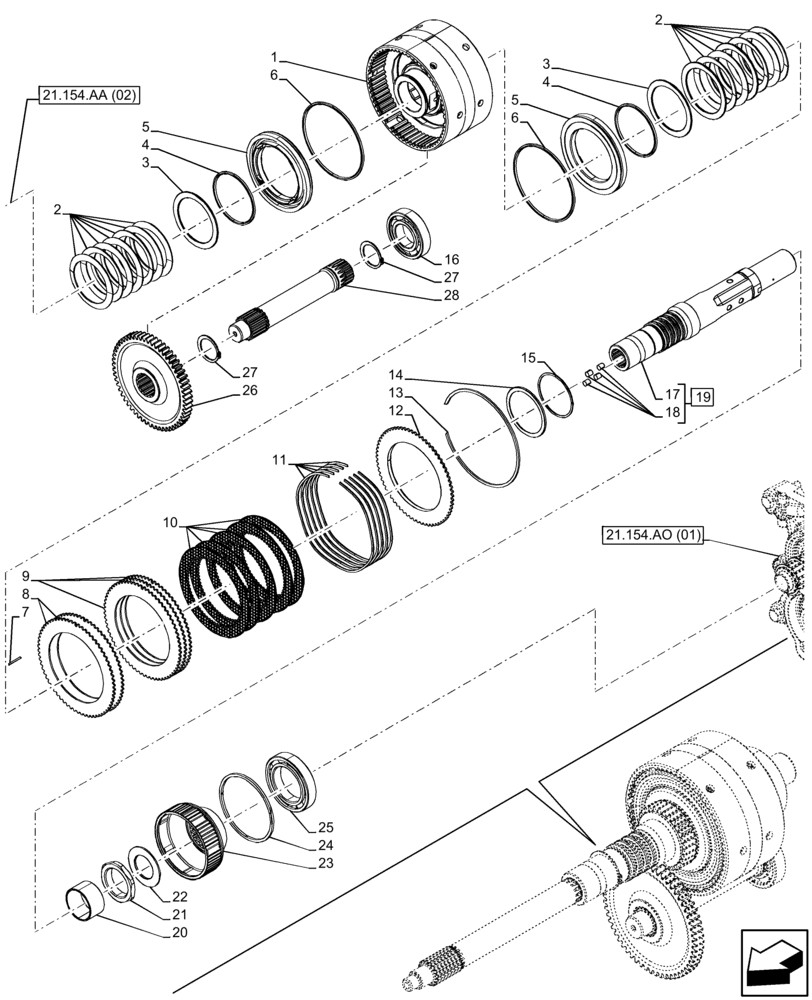

Схема запчастей Case IH FARMALL 105C - (21.154.AA[03]) - VAR - 330276, 334176 - CLUTCH (12X12 HYD PTO) (21) - TRANSMISSION
25
14
27
8
13
4
5
17
5
27
1
20
7
21.154.aa (02)
26
6
24
4
10
16
21
3
21.154.ao (01)
12
2
15
9
23
18
3
19
6
2
11
22
28

Артикул

Название

Примечание

Количество

1

47372920

CLUTCH HOUSING

, Years: -05-APR-15

1шт.

1

47714228

CLUTCH HOUSING

, Start Year: 06-APR-15

1шт.

2

5194761

SPRING,73mm ID x 93mm OD x 3.7mm Thk

14шт.

3

47137663

PISTON RING,77mm ID x 97mm OD x 2.5mm Thk

2шт.

4

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

2шт.

5

47372916

PISTON,90mm ID x 132mm OD x 16mm L

2шт.

6

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

2шт.

7

87683301

PIN,2.5mm x 26mm

1шт.

8

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

2шт.

9

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

3шт.

10

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

3шт.

11

81878948

SPRING,162.58mm ID

5шт.

12

87325224

PLATE,Z66, 117mm ID

1шт.

13

47438491

SNAP RING,M165.6, Int

1шт.

14

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

15

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

16

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 19

1шт.

18

14536490

PLUG,8.00mm Dia x 15.70mm L

4шт.

19

47372915

SHAFT

ASSY, Incl 17, 18

1шт.

20

5172775

RING RACE,50mm ID x 55mm OD x 30mm L

1шт.

21

84327528

RING NUT,M50 x 1.5

1шт.

22

84327510

SPACER,40.5mm ID x 68mm OD x 3mm Thk

1шт.

23

84327514

HUB

1шт.

24

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

25

47384240

BALL BEARING,60mm ID x 95mm OD x 18mm W

1шт.

26

84247698

GEAR,Z57

Driven, Reverse

1шт.

27

370006

SNAP RING,M40, Ext

2шт.

28

47372909

DRIVEN SHAFT,240.7mm

Input

1шт.

Выбрано товаров: 29
