Запчасти Case IH FARMALL 105C (21.148.AQ[01]) - VAR - 330069, 332069, 333069 - CENTRAL REDUCTION GEAR, SHAFT & GEAR (21) - TRANSMISSION

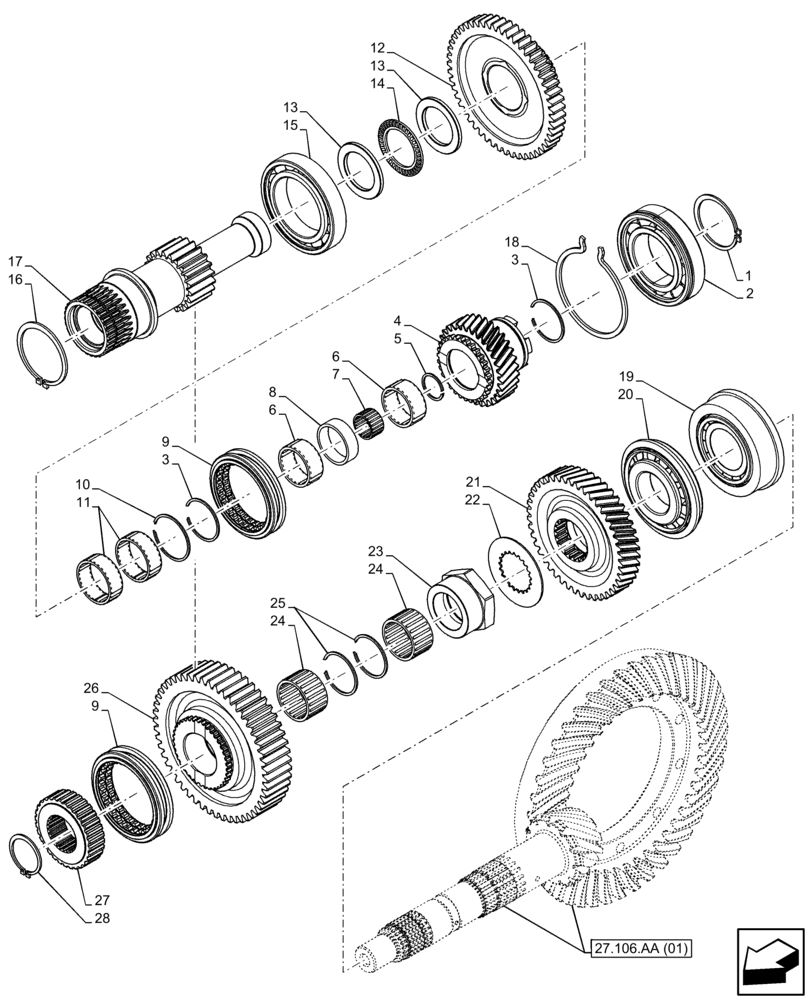

Схема запчастей Case IH FARMALL 105C - (21.148.AQ[01]) - VAR - 330069, 332069, 333069 - CENTRAL REDUCTION GEAR, SHAFT & GEAR (21) - TRANSMISSION
5
20
3
16
2
10
18
6
12
8
19
17
28
3
15
21
13
6
26
7
27.106.aa (01)
11
1
9
13
23
4
25
24
14
27
22
9
24

Артикул

Название

Примечание

Количество

1

11069876

SNAP RING,M60, Ext

1шт.

2

84370269

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

3

47372447

LOCKING RING,48mm ID

2шт.

4

47374236

DRIVEN GEAR,31T

Driven Range Medium

1шт.

5

84389655

LOCKING RING,30mm ID

1шт.

6

47375735

NEEDLE BEARING,40mm ID x 48mm OD x 19.8mm W

2шт.

7

84389037

NEEDLE BEARING,25mm ID x 30mm OD x 17mm W

1шт.

8

47374101

SPACER,42mm ID x 48mm OD x 15mm L

1шт.

9

87370421

SLEEVE,Z30

2шт.

10

5173213

SNAP RING,1.5mm Thk, Int

1шт.

11

47375734

NEEDLE BEARING,45mm ID x 52mm OD x 17.8mm W

2шт.

12

47374086

GEAR,51T

Drive, Range 12 Speed

1шт.

13

47375724

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

2шт.

14

47375730

THRUST BEARING,45.05mm ID x 64.86mm OD x 3mm W

1шт.

15

84164062

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

16

11070276

SNAP RING,M68, Ext

1шт.

17

47612767

SHAFT

1шт.

18

84355307

SNAP RING,105.6mm ID

1шт.

19

47124626

TAPERED BEARING,45mm ID x 106mm OD x 38.25mm W

1шт.

20

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

21

84410358

GEAR,Z44

1шт.

22

84273497

WASHER, LOCK,45mm ID x 75mm OD x 1.5mm Thk

1шт.

23

84330745

FERRULE,M45 x 1.5

1шт.

24

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

2шт.

25

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

2шт.

26

47383194

DRIVEN GEAR,Z21/Z51

Range 12 Speed

1шт.

27

84156493

GEAR,Z30

1шт.

28

11068876

SNAP RING,M40, Ext

1шт.

Выбрано товаров: 28
