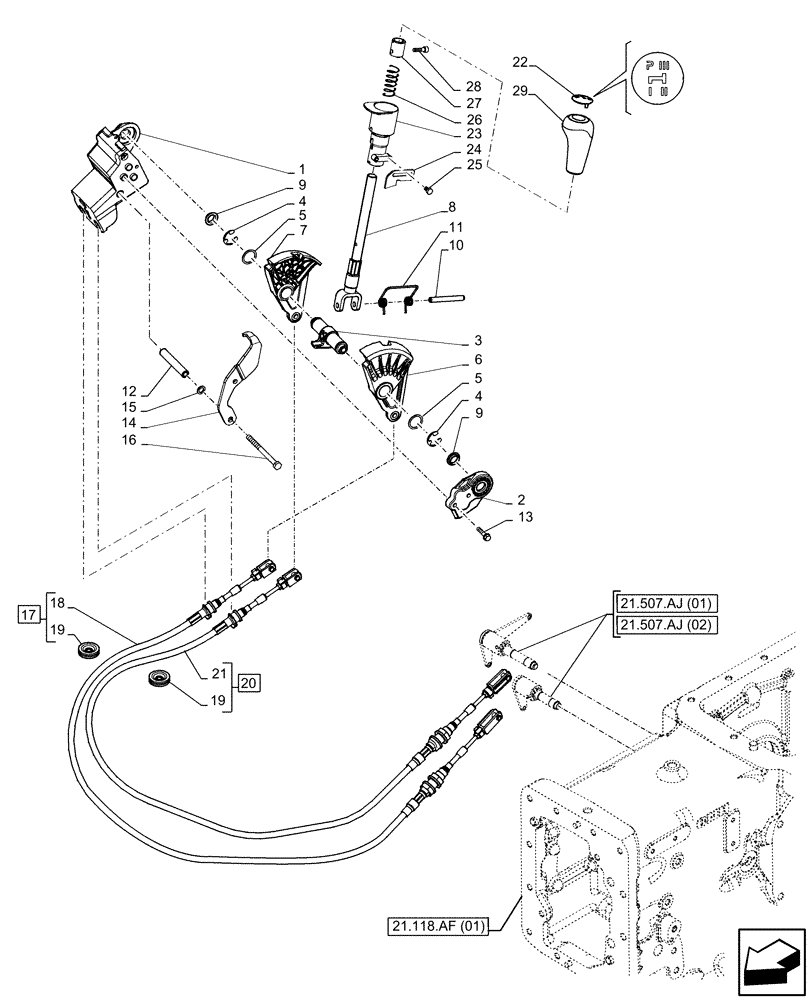

Запчасти Case IH FARMALL 105C (21.134.AI[04]) - VAR - 330276, 334176, 743546, 744576 - TRANSMISSION, CONTROL LEVER, GEARSHIFT (12X12) (21) - TRANSMISSION

1

84338365

SUPPORT

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84338371

SUPPORT

1шт.

7

84478534

FERRULE

1шт.

8

84475369

LEVER

1шт.

9

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

14

84475339

RETAINING PLATE

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

17

84366193

BOWDEN CONTROL

RH, Range Control, 1226mm Lng, Incl 18, 19 (Qty 1)

1шт.

18

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 17

1шт.

19

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

20

84366194

BOWDEN CONTROL

LH, Range Control, 1197mm Lng, Incl 19 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 20

1шт.

22

84381845

INSERT

Range Control Lever

1шт.

23

84475348

SELECTOR

1шт.

24

84475340

PLATE

1шт.

25

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

26

84491783

SPRING,Compression, 20mm OD x 54mm L

1шт.

27

84475350

SPACER,16mm ID x 23.5mm OD x 28mm L

1шт.

28

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

29

84210474

KNOB

1шт.
