Запчасти Case IH FARMALL 105C (21.118.AF[04]) - VAR - 337323, 743560, 744580, 744581, 744990 - TRANSMISSION, DRIVE, HOUSING, 4WD (21) - TRANSMISSION

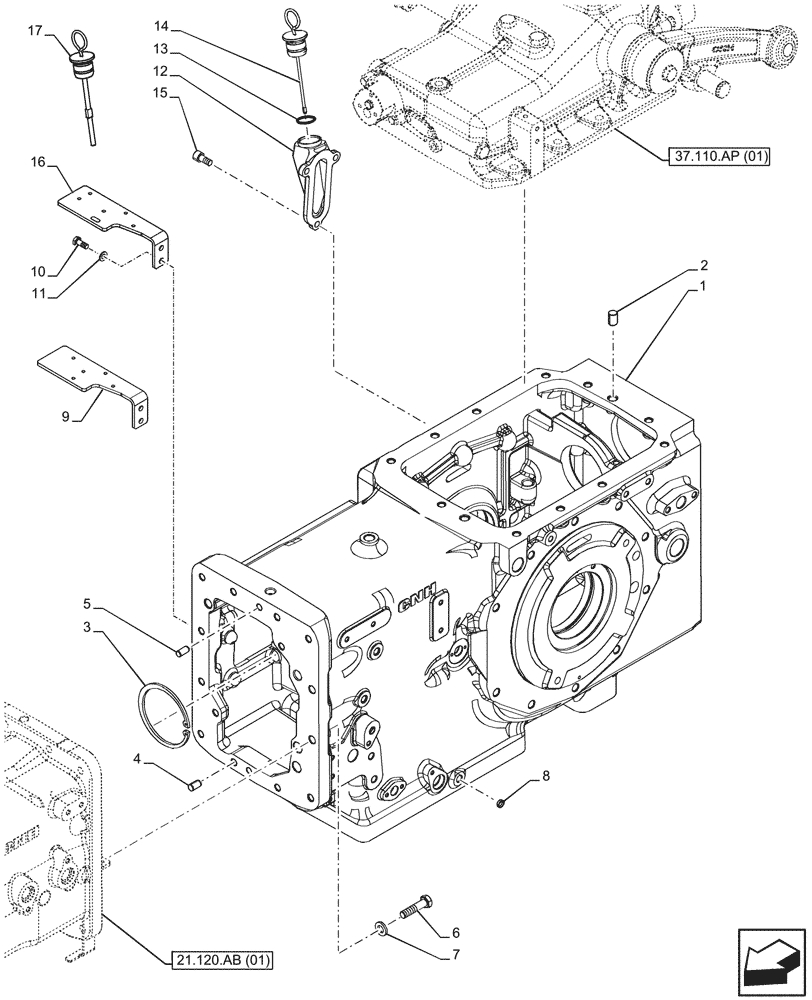

Схема запчастей Case IH FARMALL 105C - (21.118.AF[04]) - VAR - 337323, 743560, 744580, 744581, 744990 - TRANSMISSION, DRIVE, HOUSING, 4WD (21) - TRANSMISSION
21.120.ab (01)
5
6
4
2
10
17
15
8
1
9
12
3
11
13
7
16
14
37.110.ap (01)

Артикул

Название

Примечание

Количество

1

47528214

AXLE HOUSING

, Years: -30-JAN-14

1шт.

1

47665032

TRANSMISSION HOUSING

, Start Year: 31-JAN-14

1шт.

2

5119529

DOWEL,15mm OD x 22mm L

2шт.

3

11075476

SNAP RING,M110, Int

2шт.

4

4988170

PIN,10mm OD x 20mm L

2шт.

5

44908048

BUSHING,16mm OD x 14mm L

2шт.

6

15540834

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

2шт.

7

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

2шт.

8

14328301

PLUG,M12, Tapered

1шт.

9

84385195

BRACKET

, Years: -30-JAN-14

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

5177062

NECK FILLER

1шт.

13

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

14

47544277

DIPSTICK

, Years: -30-JAN-14

1шт.

15

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

16

47644371

BRACKET

, Start Year: 31-JAN-14

1шт.

17

47667661

ROD

, Start Year: 31-JAN-14

1шт.

Выбрано товаров: 18
