Запчасти Case IH FARMALL 105C (21.104.AK[05]) - VAR - 330276, 334176 - TRANSMISSION, PRESSURE CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

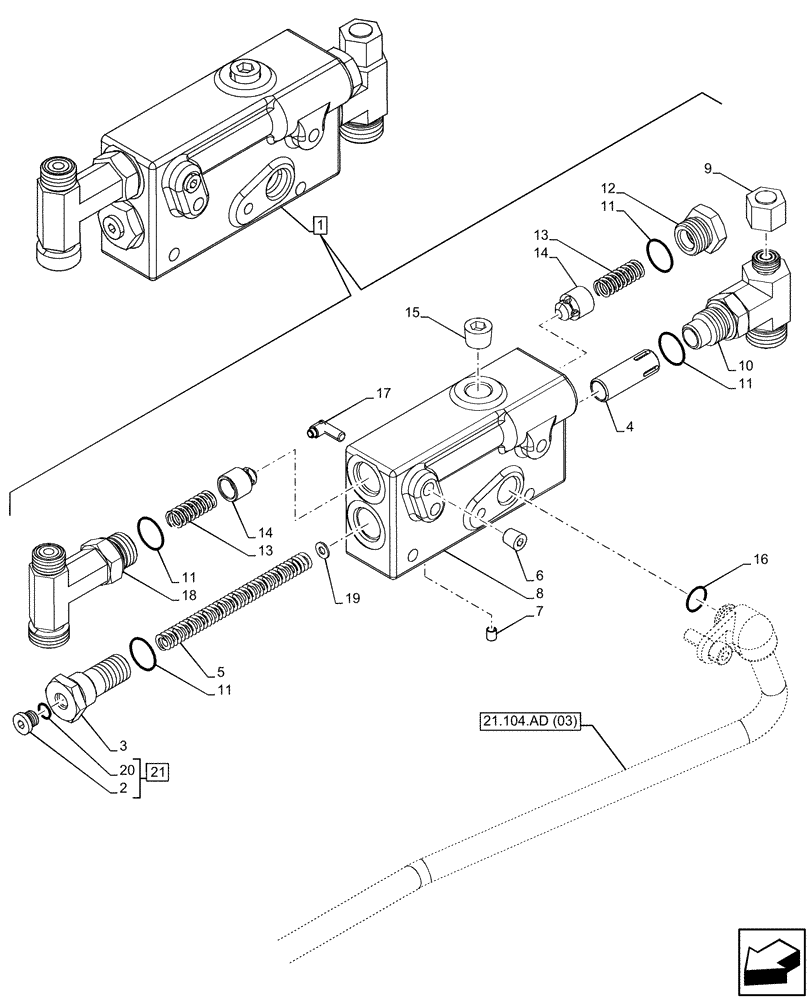

Схема запчастей Case IH FARMALL 105C - (21.104.AK[05]) - VAR - 330276, 334176 - TRANSMISSION, PRESSURE CONTROL VALVE, COMPONENTS (21) - TRANSMISSION
11
21.104.ad (03)
2
17
9
12
14
8
5
6
19
21
11
20
3
11
18
13
14
4
1
15
11
10
7
16
13

Артикул

Название

Примечание

Количество

1

84396496

VALVE, PRESSURE CONT

ASSY, Incl 2 - 19

1шт.

See Control Valve Components also on Figure 21.104.AK (02), (03), (04)

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 21

1шт.

3

84332904

PLUG,M22 x 1.5

1шт.

4

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

5

5157119

SPRING,11.5mm x 127mm

1шт.

6

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

7

14536290

PLUG,6mm

1шт.

8

NSS

NOT SOLD SEPARAT

Manifold, Incl in 1

1шт.

9

9625546

CAP,11/16" - 16 ORFS

1шт.

10

84380290

FITTING

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

12

84332901

PLUG,M22 x 1.5

1шт.

13

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

14

5169565

VALVE,By-Pass

2шт.

15

83931497

PLUG,3/8-18 x 0.42

1шт.

16

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

17

47137823

HYD CONNECTOR

1шт.

18

84579903

FITTING

1шт.

19

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

20

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

21

10118540

PLUG,M10 x 1 x 11, Brass

ASSY, Incl 2, 20

1шт.

Выбрано товаров: 22
