Запчасти Case IH FARMALL 105C (21.104.AK[04]) - VAR - 330276, 334176 - TRANSMISSION, PRESSURE CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

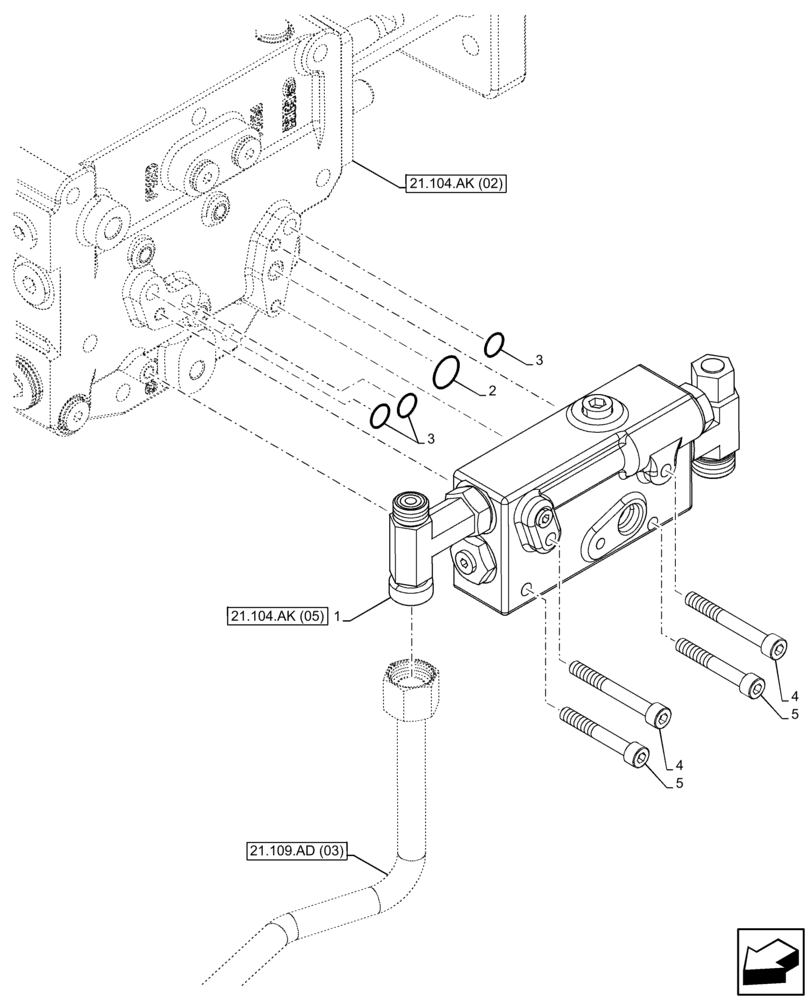

Схема запчастей Case IH FARMALL 105C - (21.104.AK[04]) - VAR - 330276, 334176 - TRANSMISSION, PRESSURE CONTROL VALVE, COMPONENTS (21) - TRANSMISSION
3
3
1
5
21.109.ad (03)
21.104.ak (02)
5
4
4
21.104.ak (05)
2

Артикул

Название

Примечание

Количество

1

84396496

VALVE, PRESSURE CONT

ASSY

1шт.

See Control Valve Components also on Figure 21.104.AF (02), (03), (05)

1шт.

2

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

3

14456980

O-RING,10.77mm ID x 2.62mm

3шт.

4

2900720

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

5

14302221

HEX SOC SCREW,M8 x 55mm, Cl 8.8

2шт.

Выбрано товаров: 6
