Запчасти Case IH FARMALL 105C (21.104.AK[02]) - VAR - 330276, 334176 - TRANSMISSION, PRESSURE CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

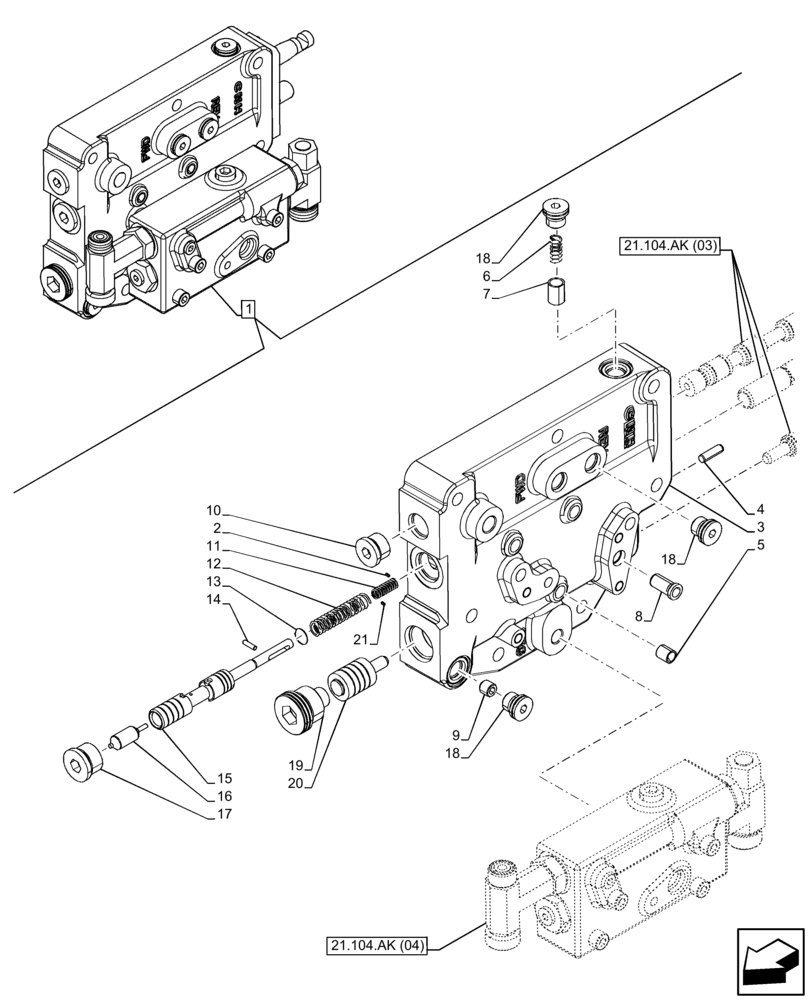

Схема запчастей Case IH FARMALL 105C - (21.104.AK[02]) - VAR - 330276, 334176 - TRANSMISSION, PRESSURE CONTROL VALVE, COMPONENTS (21) - TRANSMISSION
5
21.104.ak (03)
8
16
19
14
18
18
6
17
10
15
20
18
9
13
11
12
3
7
2
4
21
1
21.104.ak (04)

Артикул

Название

Примечание

Количество

1

47522509

VALVE, PRESSURE CONT

ASSY, Incl 2 - 21

1шт.

See Control Valve Components also on Figure 21.104.AK (03), (04), (05)

1шт.

2

84289764

SPRING,20.22mm OD

1шт.

3

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

4

10336210

DOWEL,M6 x 20

2шт.

5

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.

6

84408628

SPRING,8.5mm OD x 22.5mm L

1шт.

7

84594366

DETENT,9.5mm ID x 19.5mm L

1шт.

8

84413706

FILTER

Mesh, Transmission Control Valve

1шт.

9

47400499

BLEEDER,M10 x 1.25, 10mm L

1шт.

10

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

11

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

12

47398024

SPRING,11mm od X 53.5mm L

1шт.

13

84289763

CIRCLIP,12.25mm

1шт.

14

84289761

PIN,3.1mm x 11.5mm

1шт.

15

84413934

ROD

1шт.

16

84411956

PIN,10.98mm OD x 37mm L

1шт.

17

86625138

PLUG,7/18" - 14

1шт.

18

86598044

PLUG,Hex, M14 x 1.5 ORB

4шт.

19

47523000

PLUG,1" 1/16, 12UN-2A

1шт.

20

47397119

PISTON

1шт.

21

84289745

SPRING,20.57mm OD

1шт.

Выбрано товаров: 22
