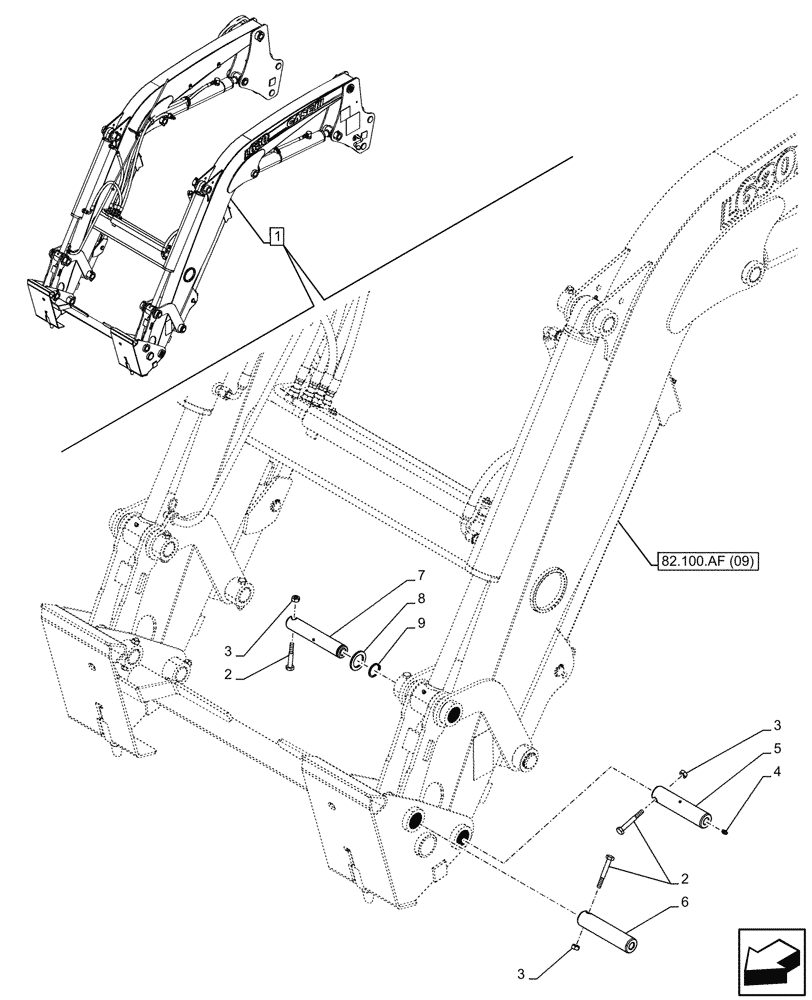

Запчасти Case IH FARMALL 100C (82.300.Ay[05]) - VAR - 336740, 336742 - LOADER BUCKET, PIN, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

1

47589346

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (06), 90.108.AB (10), 90.108.AC (28)

1шт.

SSL Tool Attach

1шт.

1

47562346

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (07), 90.108.AB (10), 90.108.AC (28)

1шт.

EU Tool Attach

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

6шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

6шт.

4

87588865

FITTING,M6 x 1 x 12mm L

2шт.

5

84393572

PIN,38mm OD x 167.5mm L

2шт.

6

84575159

PIN

2шт.

7

84575160

PIN

2шт.

8

84406164

SPACER

2шт.

9

84406163

LOCKING RING

2шт.
