(55.100.BE[03]) - VAR - 337323, 743560 - TRANSMISSION, HARNESS, HI-LO

Запчасти Case IH FARMALL 100C (55.100.BE[03]) - VAR - 337323, 743560 - TRANSMISSION, HARNESS, HI-LO (55) - ELECTRICAL SYSTEMS

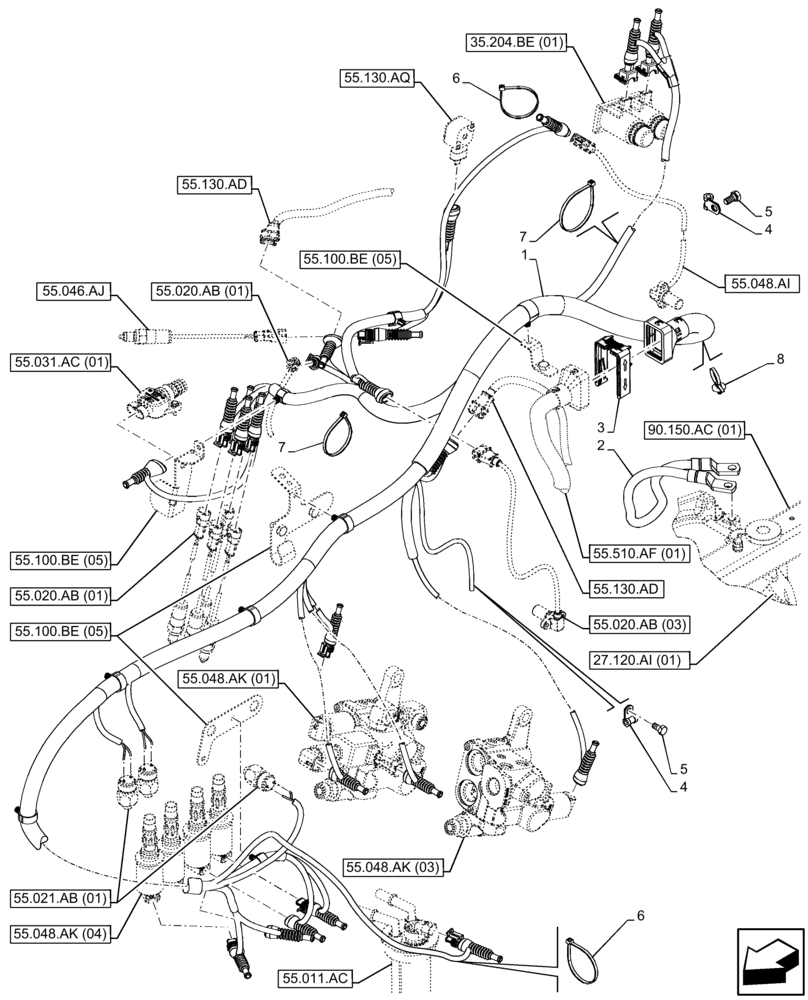

Схема запчастей Case IH FARMALL 100C - (55.100.BE[03]) - VAR - 337323, 743560 - TRANSMISSION, HARNESS, HI-LO (55) - ELECTRICAL SYSTEMS
4
90.150.ac (01)
27.120.ai (01)
55.510.af (01)
35.204.be (01)
55.011.ac
55.130.ad
4
55.020.ab (01)
55.048.ai
7
5
55.130.aq
2
7
6
8
55.100.be (05)
55.020.ab (01)
3
55.046.aj
55.048.ak (03)
55.100.be (05)
55.021.ab (01)
1
55.130.ad
55.031.ac (01)
6
55.100.be (05)
5
55.048.ak (01)
55.020.ab (03)
55.048.ak (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47540361

WIRE HARNESS

Transmission Harness, Years: -07-APR-15

1шт.

1

47728385

WIRE HARNESS

, Start Year: 08-APR-15

1шт.

2

47369903

NEG BATTERY CABLE,400mm L

1шт.

3

47439121

SLIDER

1шт.

4

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

14560187

COLLAR,199mm L

4шт.

7

14560287

CABLE TIE,207.00mm L

2шт.

8

82033028

CABLE TIE,170mm L

1шт.

Выбрано товаров: 9
