(55.014.AI[02]) - VAR - 336839, 337323, 743560 - EXHAUST PIPE, TEMPERATURE SENDER, HI-LO

Запчасти Case IH FARMALL 100C (55.014.AI[02]) - VAR - 336839, 337323, 743560 - EXHAUST PIPE, TEMPERATURE SENDER, HI-LO (55) - ELECTRICAL SYSTEMS

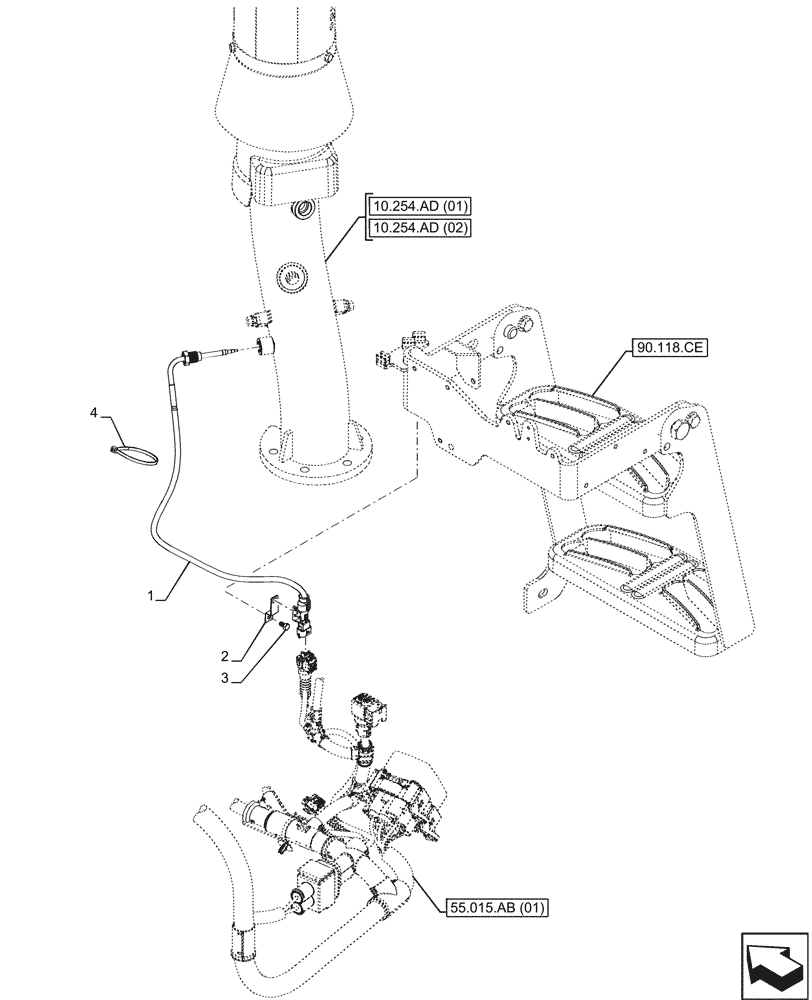

Схема запчастей Case IH FARMALL 100C - (55.014.AI[02]) - VAR - 336839, 337323, 743560 - EXHAUST PIPE, TEMPERATURE SENDER, HI-LO (55) - ELECTRICAL SYSTEMS
10.254.ad (02)
3
2
4
1
90.118.ce
55.015.ab (01)
10.254.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Gas Temperature, 50mm

1шт.

Valid only for Var. 340129, 340134, 340139

1шт.

2

47564478

SUPPORT

1шт.

Valid only for Var. 340001, 340002

1шт.

3

10977521

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

1шт.

Valid only for Var. 340001, 340002

1шт.

4

14560187

COLLAR,199mm L

1шт.

Valid only for Var. 340001, 340002

1шт.

Выбрано товаров: 8
