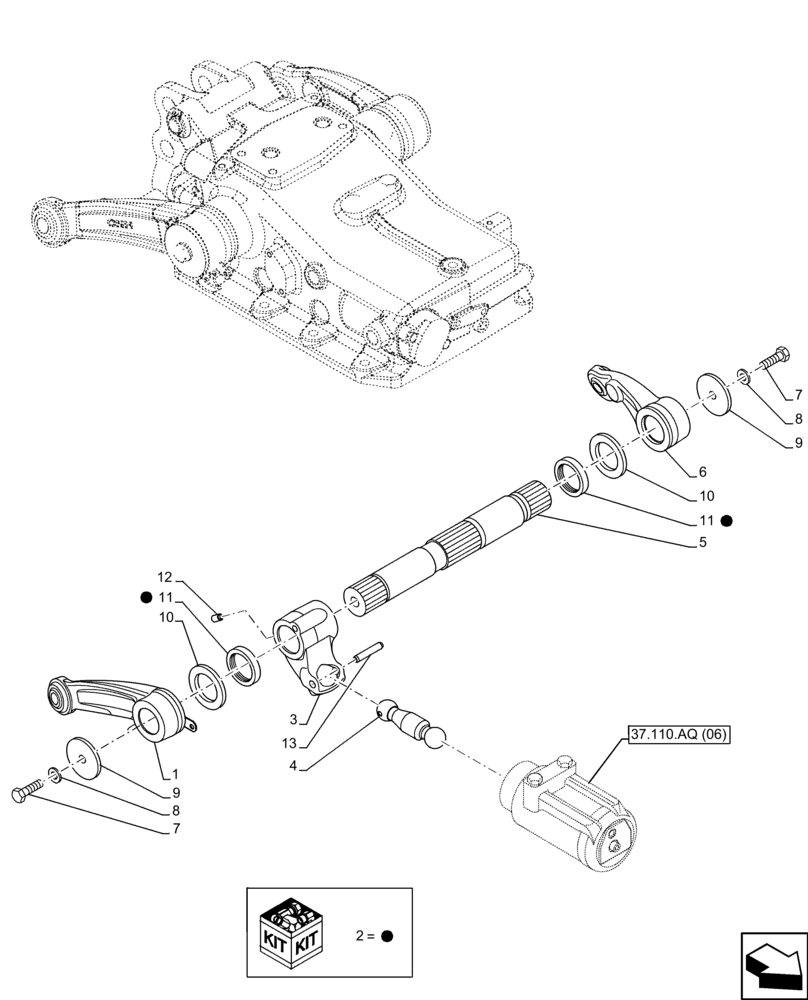

Запчасти Case IH FARMALL 100C (37.110.AI[12]) - VAR - 743597 - REAR, HYDRAULIC LIFT, SUPPORT, HI-LO, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84561192

LIFT ARM

RH

1шт.

2

84562043

GASKET KIT

Incl 11

1шт.

Include also Gaskets in Figure 37.110.AQ (06), 35.114.AA (03)

1шт.

3

47357493

CRANK

1шт.

4

84559714

CONNECTING ROD

1шт.

5

84562664

SHAFT

1шт.

6

84560234

LIFT ARM

LH

1шт.

7

11422321

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

8

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

9

84563264

WASHER

2шт.

10

84559712

RING

2шт.

11

84559707

OIL SEAL,55mm ID x 70mm OD x 10mm Thk

2шт.

12

877-51020

SCREW,M0 x 20mm

M10 x 20

1шт.

13

300874

LOCK PIN,M8 x 60, Slotted

1шт.
