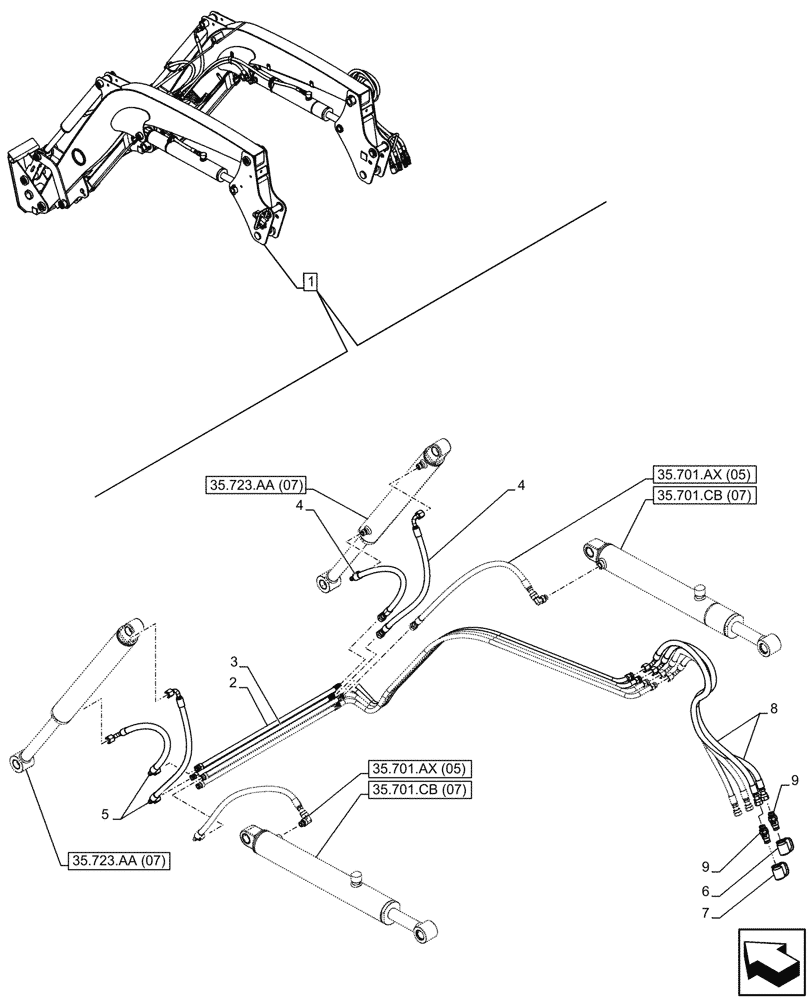

Запчасти Case IH FARMALL 100C (35.723.AB[05]) - VAR - 336740, 336742 - LOADER ARM, BUCKET CYLINDER LINES, MOUNTING, W/O SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

47589346

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (06), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

SSL Tool Attach

1шт.

1

47562346

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (07), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

EU Tool Attach

1шт.

2

84575178

PIPE

1шт.

3

84575177

PIPE

1шт.

4

84575186

HOSE

RH Cylinfer

2шт.

5

84575188

HOSE

LH Cylinder

2шт.

6

84406402

PLASTIC PLUG

Blue

1шт.

7

84406401

PLASTIC PLUG

Red

1шт.

8

84406192

FLEXIBLE HOSE,1250mm L

2шт.

9

84406394

FITTING

2шт.
