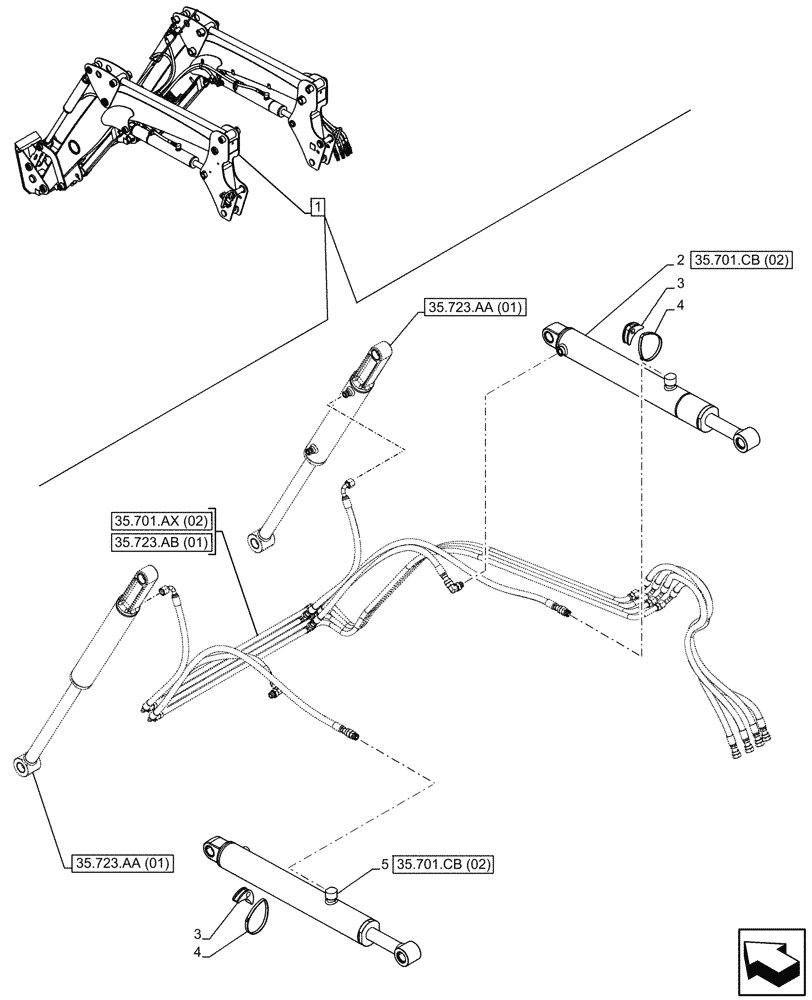

Запчасти Case IH FARMALL 100C (35.701.CB[01]) - VAR - 336734, 336736 - LOADER ARM, BOOM CYLINDER, MOUNTING, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

84321725

LOADER

ASSY, Incl 2 - 5

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.723.AA (01), 35.723.AB (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (02), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

SSL Tool Attach.

1шт.

1

47556496

LOADER

ASSY, Incl 2 - 5

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.723.AA (01), 35.723.AB (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (03), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

EU Tool Attach.

1шт.

2

84406290

LIFT CYLINDER

RH, ASSY

1шт.

3

85805567

BLOCK

2шт.

4

84406396

FIXING STRIP

2шт.

5

84406289

LIFT CYLINDER

LH, ASSY

1шт.
