Запчасти Case IH FARMALL 100C (35.701.AX[02]) - VAR - 336734, 336736 - LOADER ARM, BOOM CYLINDER LINES, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS

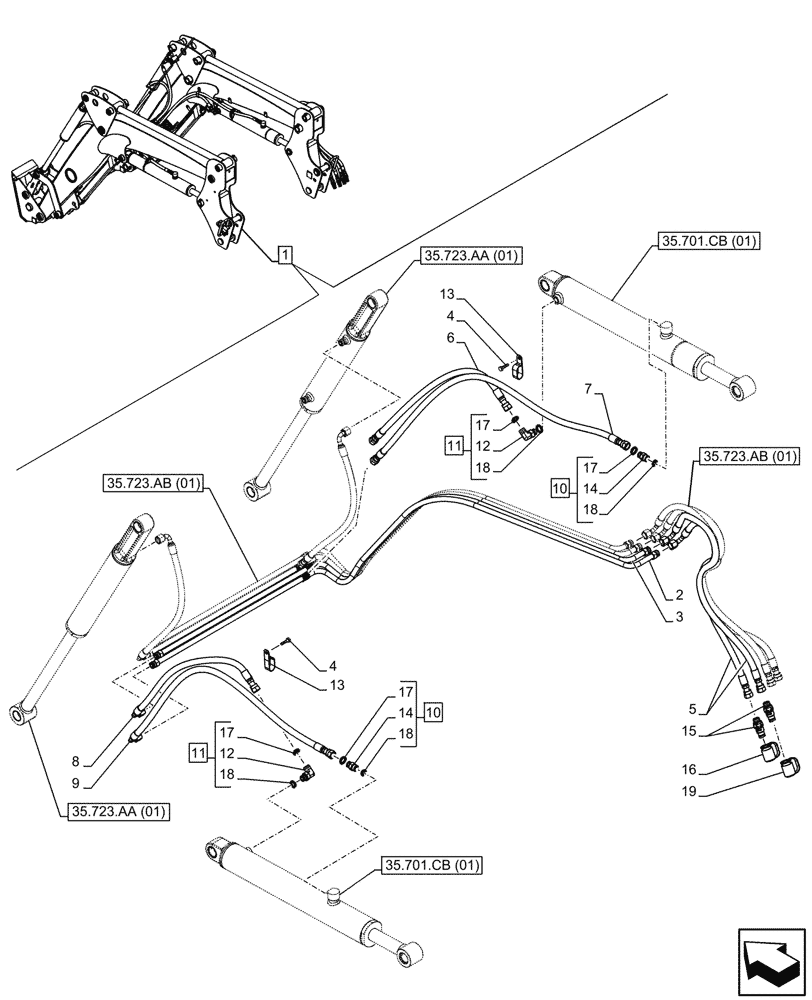

Схема запчастей Case IH FARMALL 100C - (35.701.AX[02]) - VAR - 336734, 336736 - LOADER ARM, BOOM CYLINDER LINES, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS
35.701.cb (01)
17
4
5
4
19
10
10
18
8
11
16
18
1
15
3
11
7
18
9
12
14
13
14
17
6
17
17
2
12
13
18
35.723.aa (01)
35.723.aa (01)
35.723.ab (01)
35.723.ab (01)
35.701.cb (01)

Артикул

Название

Примечание

Количество

1

84321725

LOADER

ASSY, Incl 2 - 19

1шт.

See also Arm Loader Components in Figure 35.701.CB (01), 35.723.AA (01), 35.723.AB (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (02), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

SSL Tool Attach.

1шт.

1

47556496

LOADER

ASSY, Incl 2 - 19

1шт.

See also Arm Loader Components in Figure 35.701.CB (01), 35.723.AA (01), 35.723.AB (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (03), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

EU Tool Attach.

1шт.

2

84406384

RIGID TUBE

Front Loader Cylinder

1шт.

3

84406386

RIGID TUBE

Front Loader Cylinder, Incl O-Ring 89992298 (Qty 3)

1шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

84406192

FLEXIBLE HOSE,1250mm L

Front Loader , 1250mm

2шт.

6

84406389

FLEXIBLE HOSE

Front Loader Cylinder, RH

1шт.

7

84406390

FLEXIBLE HOSE

Front Loader Cylinder, RH

1шт.

8

84406391

FLEXIBLE HOSE

Front Loader Cylinder, LH

1шт.

9

84406392

FLEXIBLE HOSE

Front Loader Cylinder, LH

1шт.

10

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 14, 17 (Qty 1), 18 (Qty 1)

2шт.

11

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 12, 17 (Qty 1), 18 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

2шт.

13

5145401

CLAMP

2шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

15

84406394

FITTING

2шт.

16

84406395

PLASTIC PLUG

Yellow

1шт.

17

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

18

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

19

84406403

PLASTIC PLUG

Green

1шт.

Выбрано товаров: 24
