Запчасти Case IH FARMALL 100C (35.204.BE[10]) - VAR - 743569 - 2 REMOTE CONTROL VALVE, W/ 4 DELUXE COUPLERS, DISTRIBUTOR, COMPONENTS, HI-LO, CAB (35) - HYDRAULIC SYSTEMS

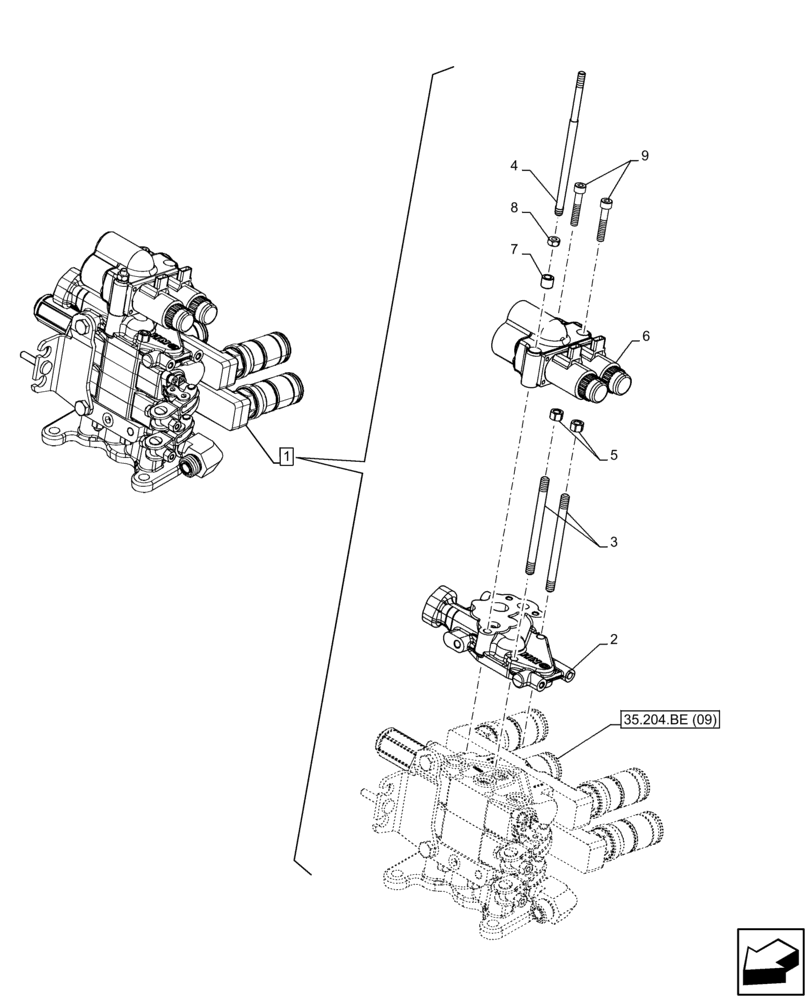

Схема запчастей Case IH FARMALL 100C - (35.204.BE[10]) - VAR - 743569 - 2 REMOTE CONTROL VALVE, W/ 4 DELUXE COUPLERS, DISTRIBUTOR, COMPONENTS, HI-LO, CAB (35) - HYDRAULIC SYSTEMS
1
3
4
8
5
9
7
2
35.204.be (09)
6

Артикул

Название

Примечание

Количество

1

47379445

DISTRIBUTOR

ASSY, Incl 2 - 9

1шт.

2

87396841

FLANGE

1шт.

3

5146464

TIE-ROD

3/8-24 152mm

2шт.

4

84349388

STUD

3/8-24 218mm

1шт.

5

5116857

NUT,3/8" - 24

3/8-24 R80 DAC

5шт.

6

47671314

INCHING VALVE

1шт.

7

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

Выбрано товаров: 9
