Запчасти Case IH FARMALL 100C (35.114.AA[03]) - VAR - 743597 - REAR, HYDRAULIC LIFT, CONTROL VALVE, COMPONENTS, HI-LO, CAB (35) - HYDRAULIC SYSTEMS

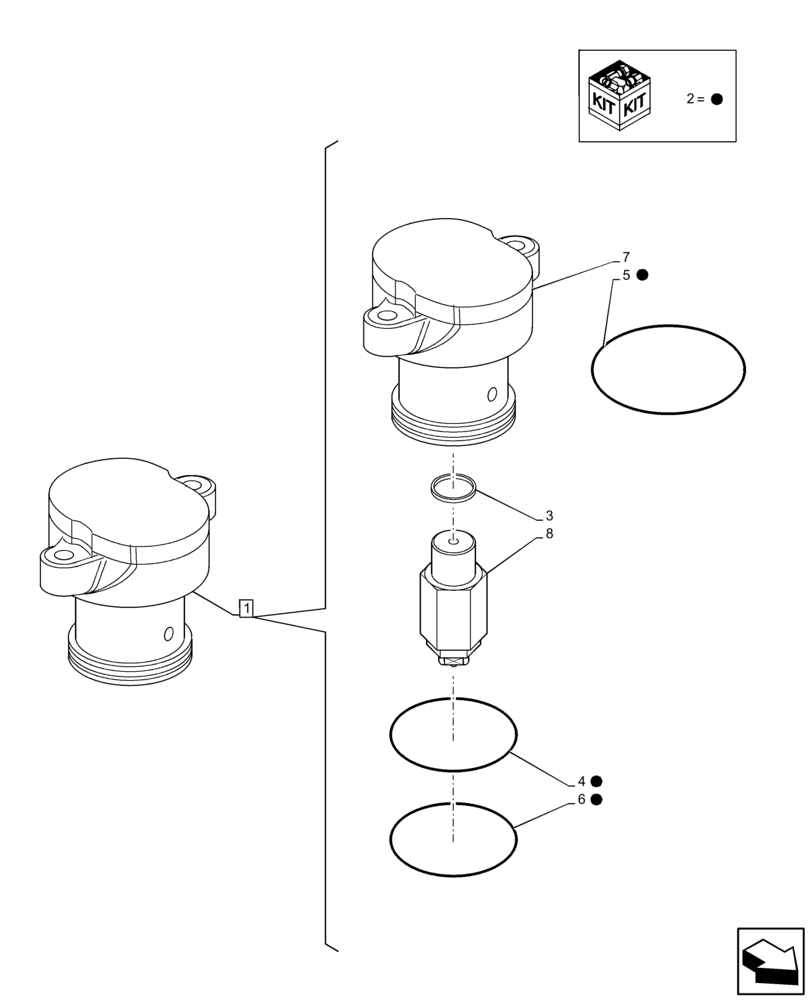

Схема запчастей Case IH FARMALL 100C - (35.114.AA[03]) - VAR - 743597 - REAR, HYDRAULIC LIFT, CONTROL VALVE, COMPONENTS, HI-LO, CAB (35) - HYDRAULIC SYSTEMS
2
2
2
6
8
7
3
5
2
4
1
2

Артикул

Название

Примечание

Количество

1

84561214

VALVE, PRESSURE CONT

ASSY, Incl 3 - 8

1шт.

2

84562043

GASKET KIT

Incl 4 - 6

1шт.

Include also Gaskets in Figure 37.110.AI (11), 37.110.AQ (06)

1шт.

3

10280060

SEAL,M14.2 x 20 x 1.5

1шт.

4

84561211

O-RING,3.53mm Thk x 47.63mm ID

1шт.

5

84263721

O-RING,58.74mm ID x 3.53mm Thk

1шт.

6

47361429

RING

1шт.

7

84561208

VALVE BODY

1шт.

8

84561209

VALVE, PRESSURE CONT

1шт.

Выбрано товаров: 9
