Запчасти Case IH FARMALL 100C (35.100.AH[01]) - VAR - 332785, 390831, 743595, 743596 - HYDRAULIC LIFT, OIL FILTER, LINE, PIPE (35) - HYDRAULIC SYSTEMS

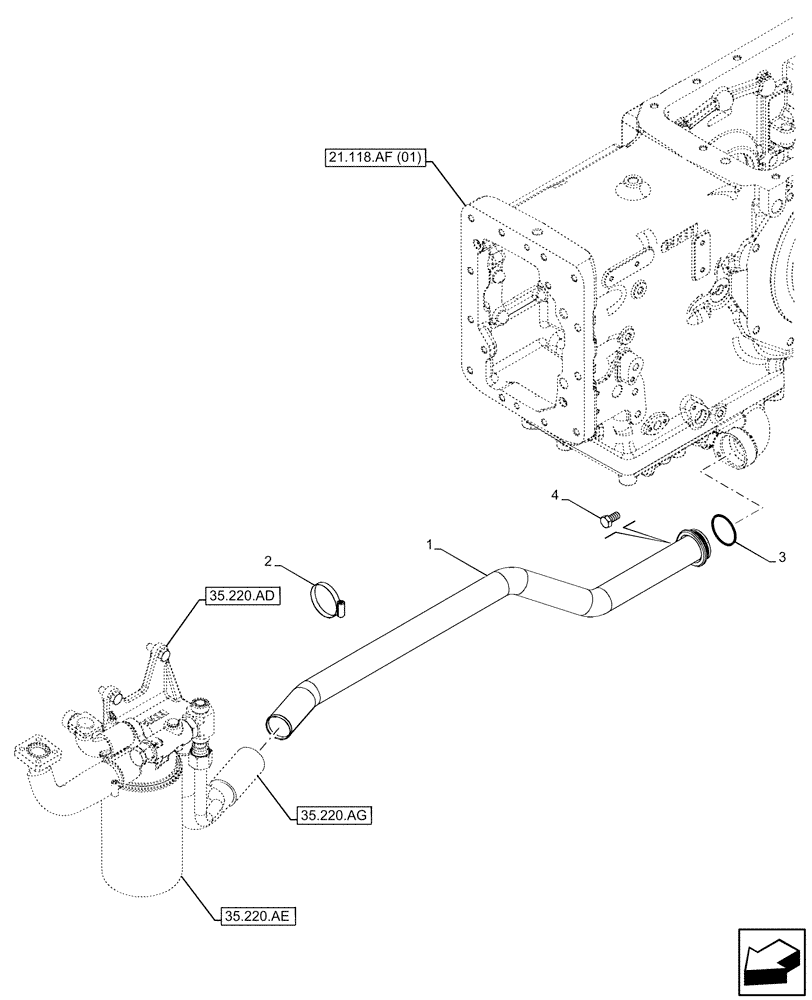

Схема запчастей Case IH FARMALL 100C - (35.100.AH[01]) - VAR - 332785, 390831, 743595, 743596 - HYDRAULIC LIFT, OIL FILTER, LINE, PIPE (35) - HYDRAULIC SYSTEMS
35.220.ad
1
4
3
2
35.220.ag
35.220.ae
21.118.af (01)

Артикул

Название

Примечание

Количество

1

47470683

PIPE

Suction

1шт.

2

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 70mm STL ZND

1шт.

3

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 4
