Запчасти Case IH FARMALL 100C (31.114.AB[16]) - VAR - 743594 - PTO 540/1000 RPM, DRIVEN SHAFT, HI-LO (31) - IMPLEMENT POWER TAKE OFF

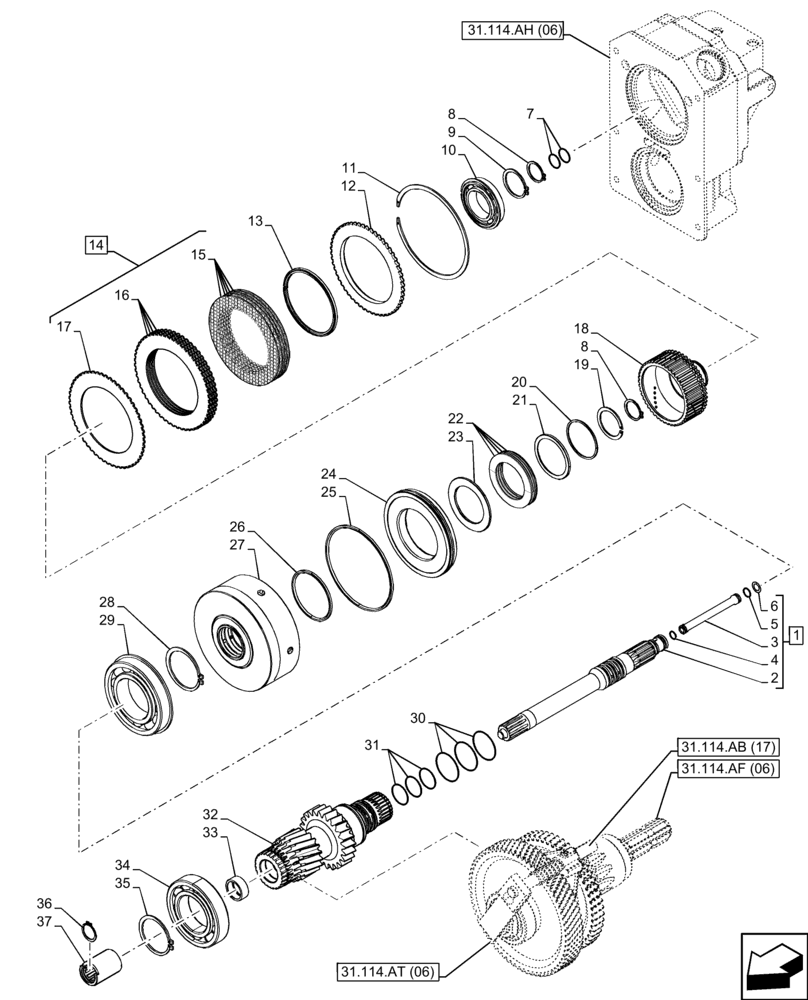

Схема запчастей Case IH FARMALL 100C - (31.114.AB[16]) - VAR - 743594 - PTO 540/1000 RPM, DRIVEN SHAFT, HI-LO (31) - IMPLEMENT POWER TAKE OFF
36
18
32
23
17
30
24
14
4
7
31.114.at (06)
15
31.114.ab (17)
21
2
35
22
34
31
9
31.114.ah (06)
28
10
12
27
25
19
31.114.af (06)
11
29
13
33
16
26
6
3
8
37
1
5
8
20

Артикул

Название

Примечание

Количество

1

47612967

SHAFT

ASSY, Incl 2 - 6

1шт.

2

47612965

SHAFT,309.4mm L

309.4mm

1шт.

3

47549817

SHAFT,104mm L

104mm

1шт.

4

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

5

14453080

O-RING,0.426" ID x 0.07"

1шт.

6

47552474

LOCKING RING

1шт.

7

87485814

OIL SEAL,18.6mm ID x 22mm OD x 1.7mm Thk

2шт.

8

11067676

SNAP RING,M28, Ext

2шт.

9

11068876

SNAP RING,M40, Ext

1шт.

10

84357597

BALL BEARING,40mm ID x 68mm OD x 15mm W

40 x 68 x15mm

1шт.

11

5124067

CIRCLIP

1шт.

12

87727589

DISC

1шт.

13

5177500

SEAL,Locking, 90.7mm ID x 100.5mm OD x 3.8mm Thk

1шт.

14

84323639

CLUTCH PLATE

ASSY, Incl 15 - 17

1шт.

15

5165950

DISC

5шт.

16

84411374

DISC

4шт.

17

5189182

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 2.3mm Thk

232.5

1шт.

18

84323633

HUB

1шт.

19

84341833

LOCKING RING

1шт.

20

5191305

CIRCLIP,54mm ID

1шт.

21

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

22

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

6шт.

23

84323663

RING

1шт.

24

47400054

PTO CLUTCH

1шт.

25

5182703

GASKET,119.55mm ID x 127mm OD x 3.2mm Thk

1шт.

26

5168345

SEAL,67.55mm ID x 75mm OD x 3.2mm Thk

1шт.

27

47399341

CLUTCH HOUSING

1шт.

28

11069876

SNAP RING,M60, Ext

1шт.

29

84355150

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22mm

1шт.

30

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

3шт.

31

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

3шт.

32

47390762

DRIVE SHAFT

PTO 540/1000 RPM

1шт.

33

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

34

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

35

11069576

SNAP RING,M55, Ext

1шт.

36

11067276

SNAP RING,M24, Ext

1шт.

37

47612232

SLEEVE,25mm ID x 31mm OD x 48mm L

1шт.

Выбрано товаров: 37
