(31.110.AP[02]) - VAR - 743565 - PTO 540 RPM, OUTPUT SHAFT, HI-LO

Запчасти Case IH FARMALL 100C (31.110.AP[02]) - VAR - 743565 - PTO 540 RPM, OUTPUT SHAFT, HI-LO (31) - IMPLEMENT POWER TAKE OFF

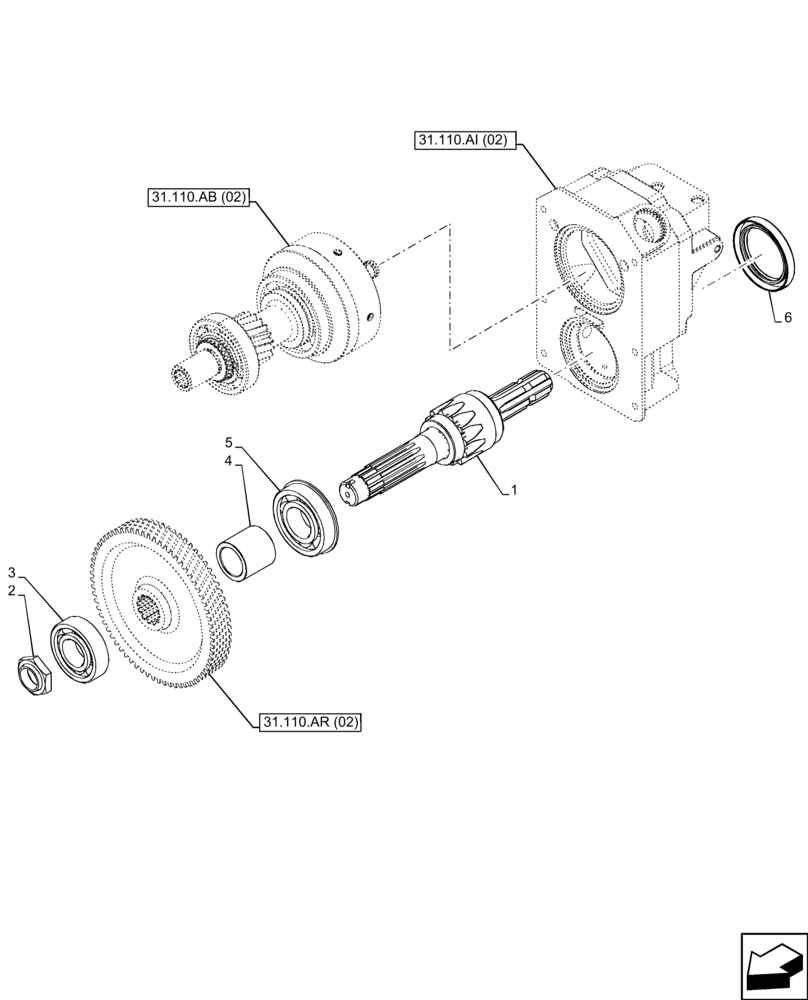

Схема запчастей Case IH FARMALL 100C - (31.110.AP[02]) - VAR - 743565 - PTO 540 RPM, OUTPUT SHAFT, HI-LO (31) - IMPLEMENT POWER TAKE OFF
31.110.ab (02)
31.110.ai (02)
4
3
1
6
2
5
31.110.ar (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47626741

SHAFT,355.5mm L

1шт.

2

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

3

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

D35 x 80 x 21mm

1шт.

4

5168235

SPACER,38mm ID x 52mm OD x 50mm L

1шт.

5

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

6

84357623

SEAL,67.9mm ID x 95mm OD x 12mm Thk

70 x 95 x 12mm

1шт.

Выбрано товаров: 6
