Запчасти Case IH FARMALL 100C (25.108.AN[04]) - VAR - 337323 - FRONT AXLE, STEERING KNUCKLE, HUB, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM

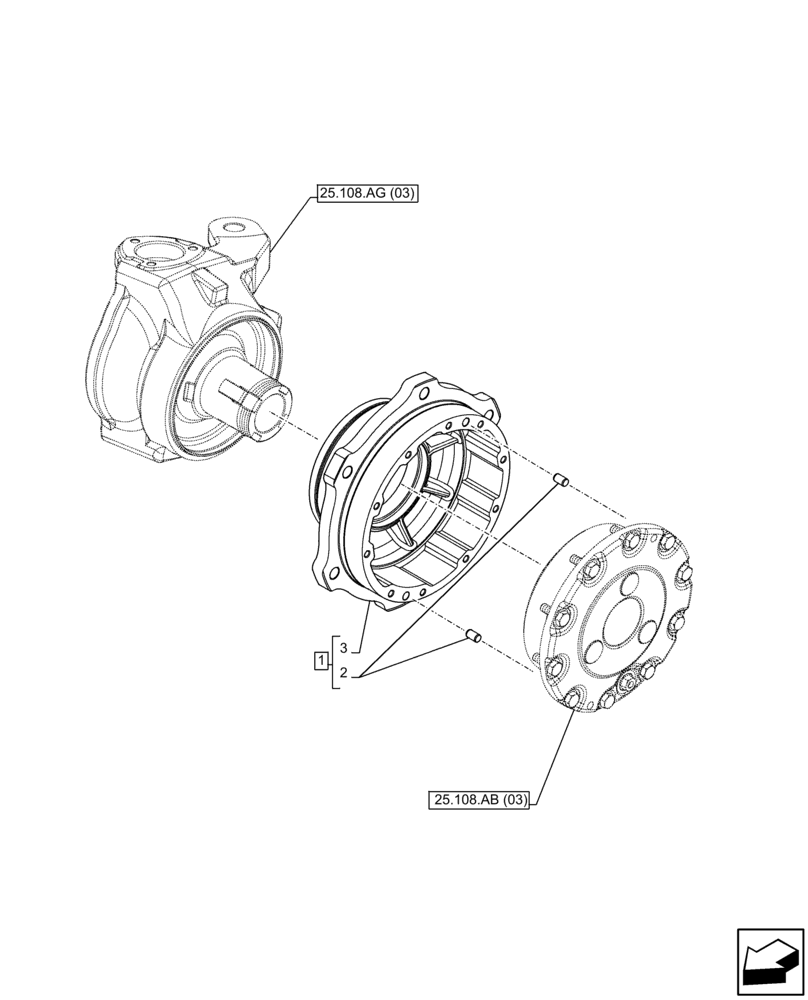

Схема запчастей Case IH FARMALL 100C - (25.108.AN[04]) - VAR - 337323 - FRONT AXLE, STEERING KNUCKLE, HUB, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM
2
1
25.108.ag (03)
3
25.108.ab (03)

Артикул

Название

Примечание

Количество

1

5198496

HUB

ASSY, Incl 2, 3

1шт.

2

4988170

PIN,10mm OD x 20mm L

2шт.

3

5198480

HUB

1шт.
