Запчасти Case IH FARMALL 100C (25.108.AG[03]) - VAR - 743560 - FRONT AXLE, STEERING KNUCKLE, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO (25) - FRONT AXLE SYSTEM

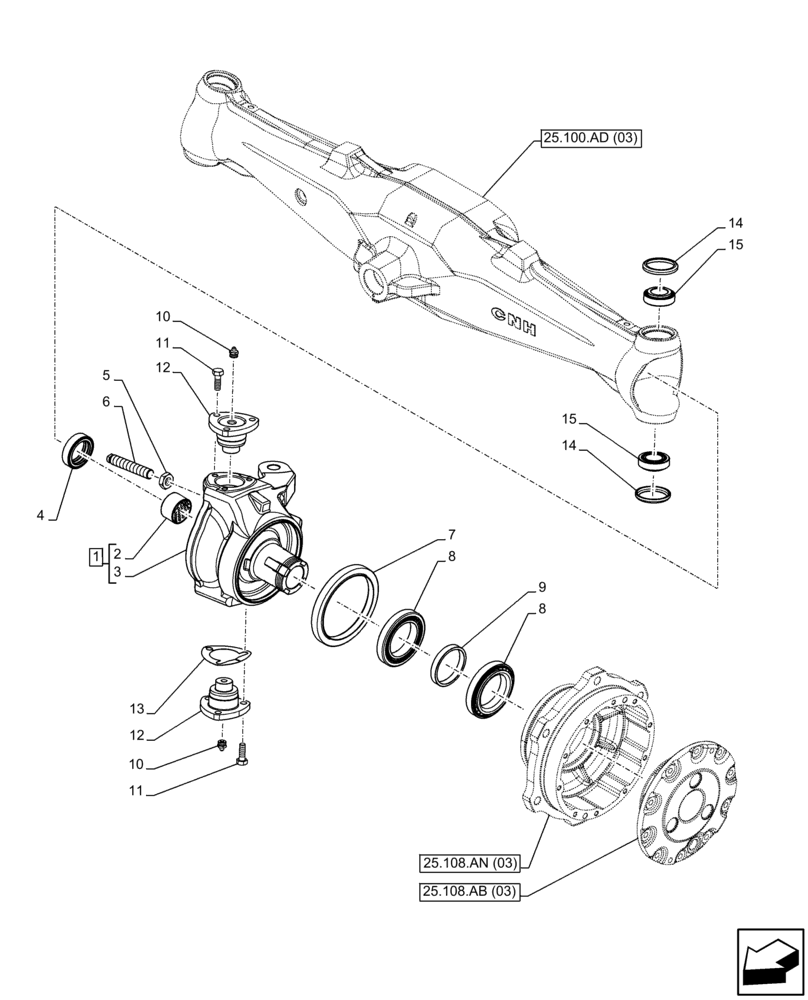

Схема запчастей Case IH FARMALL 100C - (25.108.AG[03]) - VAR - 743560 - FRONT AXLE, STEERING KNUCKLE, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO (25) - FRONT AXLE SYSTEM
10
14
25.108.ab (03)
15
6
14
12
10
2
4
9
11
12
7
11
8
25.100.ad (03)
15
13
8
25.108.an (03)
5
3
1

Артикул

Название

Примечание

Количество

1

84372910

STEERING KNUCKLE

ASSY, LH, Incl 2, 3

1шт.

1

84372905

STEERING KNUCKLE

ASSY, RH, Incl 2, 3

1шт.

2

84321698

BUSHING,45.1mm ID x 50.13mm OD x 25.25mm L

1шт.

3

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 1

1шт.

4

47584791

SEAL,46mm ID x 65mm OD x 19mm Thk

1шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

6

87751873

SCREW,M18 x 105mm, Cl 10.9

1шт.

7

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

1шт.

8

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

2шт.

9

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

1шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

12

5165271

BALL STUD,M14 x 1.5 x 46mm

2шт.

13

5100793

SHIM,.30mm Thk

1шт.

13

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

13

5100791

SHIM,.20mm Thk

1шт.

13

5100792

SHIM,.25mm Thk

1шт.

13

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

14

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

2шт.

15

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

2шт.

Выбрано товаров: 20
