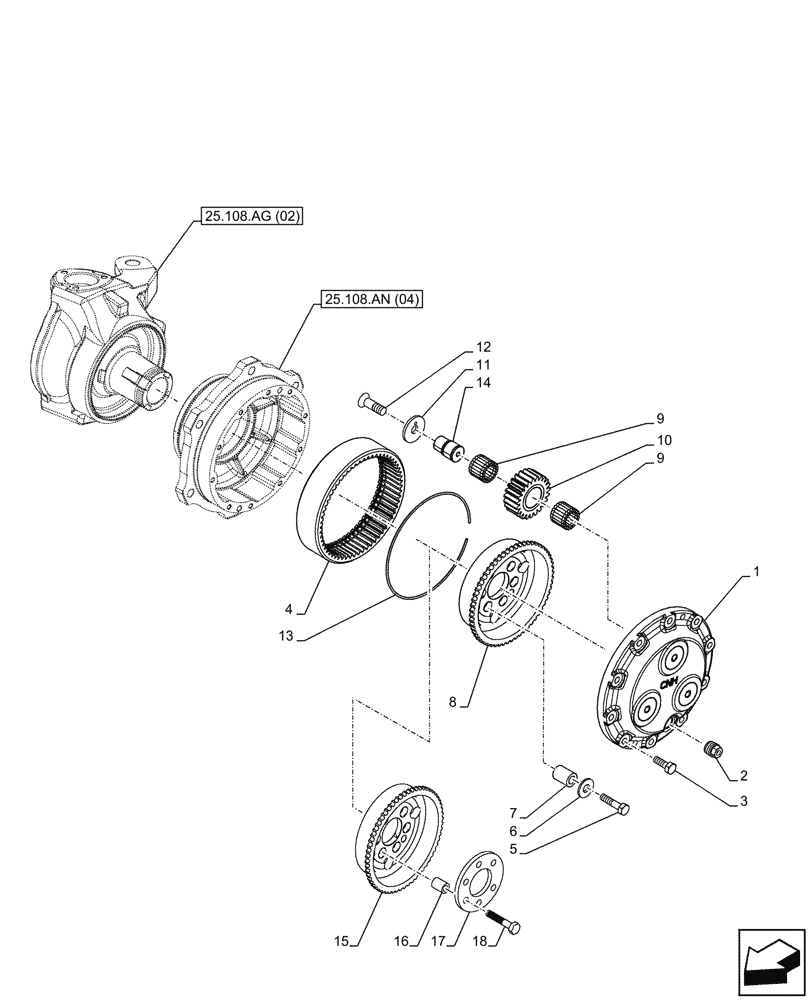

Запчасти Case IH FARMALL 100C (25.108.AB[04]) - VAR - 337323 - FRONT AXLE, PLANETARY REDUCER, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM

1

47698536

PLANET CARRIER

1шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

3

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

10шт.

4

84328458

RING GEAR,60T

1шт.

5

16323830

BOLT,Hex, M10 x 1.25 x 45mm

, Years: -12-JUL-16

6шт.

6

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

, Years: -12-JUL-16

6шт.

7

5179292

BUSHING,10.5mm ID x 15.9mm OD x 22.8mm L

, Years: -12-JUL-16

6шт.

8

84339420

SUPPORT

, Years: -12-JUL-16

1шт.

9

84380206

NEEDLE ROLLER,4mm OD x 12mm L

186шт.

10

84183888

PLANETARY GEAR,23T

3шт.

11

84183884

THRUST WASHER,13mm ID x 40mm OD x 7mm Thk

3шт.

12

84273746

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

M12 x 35mm

3шт.

13

5165162

SNAP RING,M50, Int

1шт.

14

84299880

PIN,40.3mm OD x 41.3mm L

3шт.

15

47875483

RING GEAR

, Start Year: 11-JUL-16

1шт.

16

47805056

BUSHING

, Start Year: 11-JUL-16

6шт.

17

47983461

LOCKING PLATE

, Start Year: 11-JUL-16

1шт.

18

47797649

SCREW

, Start Year: 11-JUL-16

6шт.
